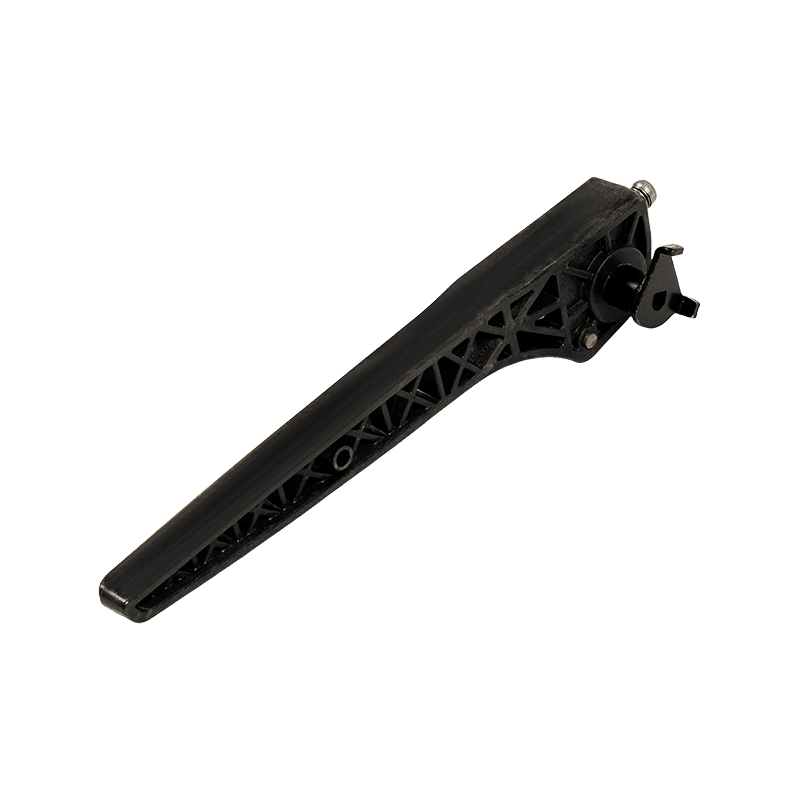

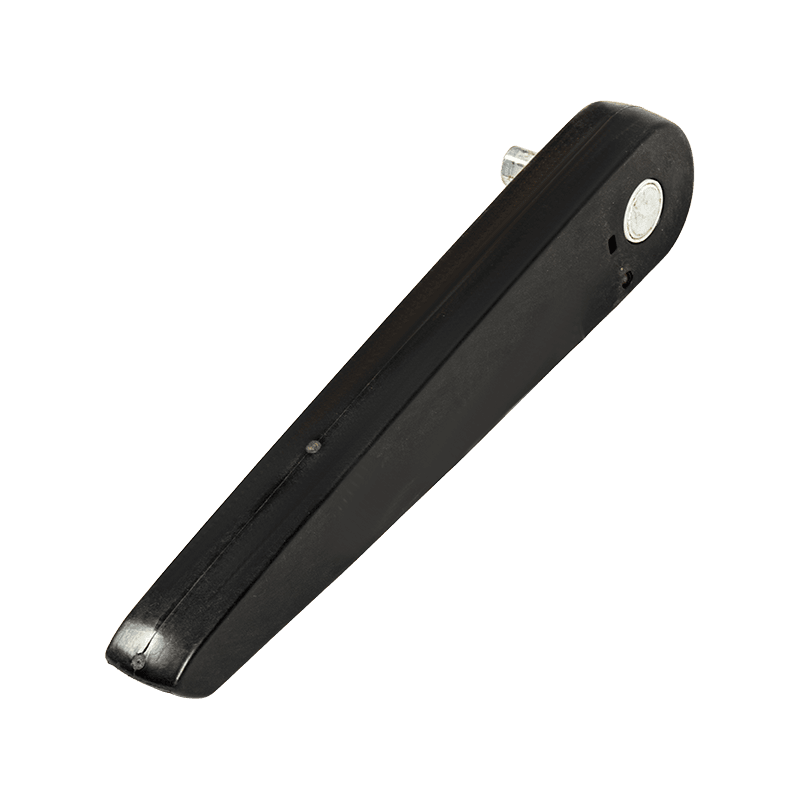

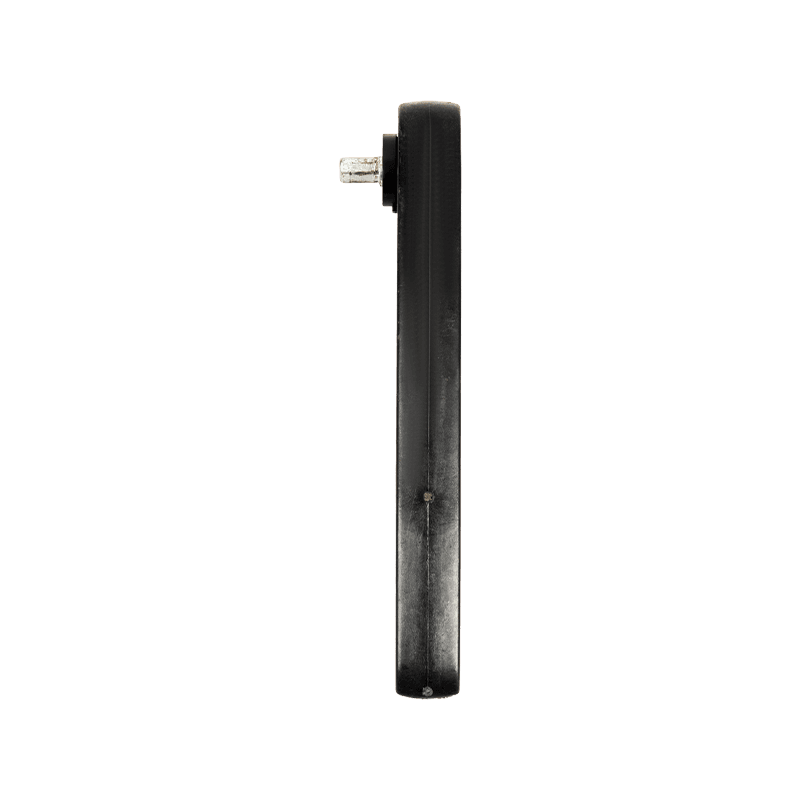

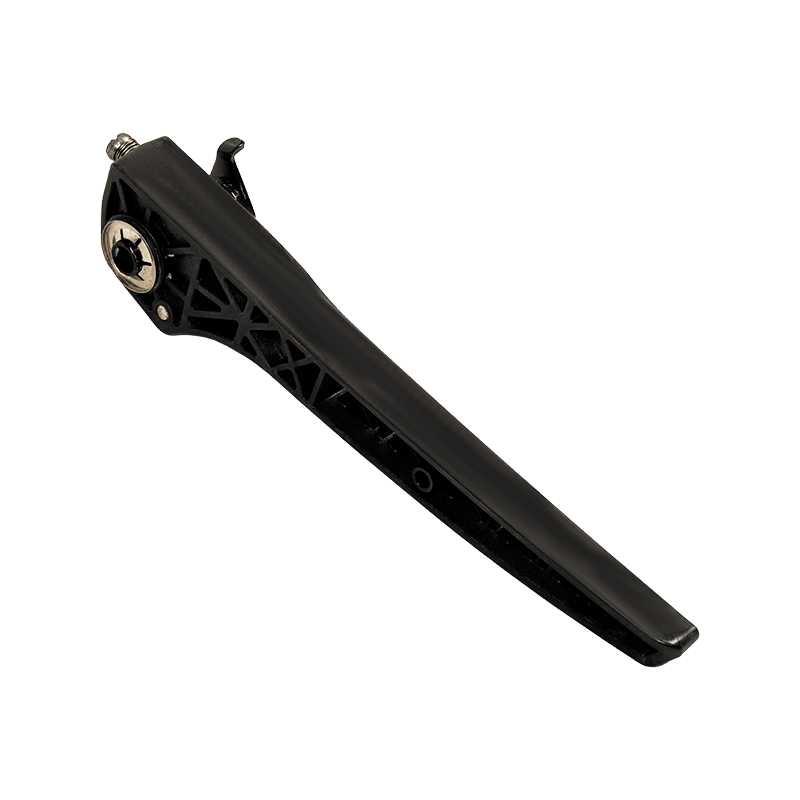

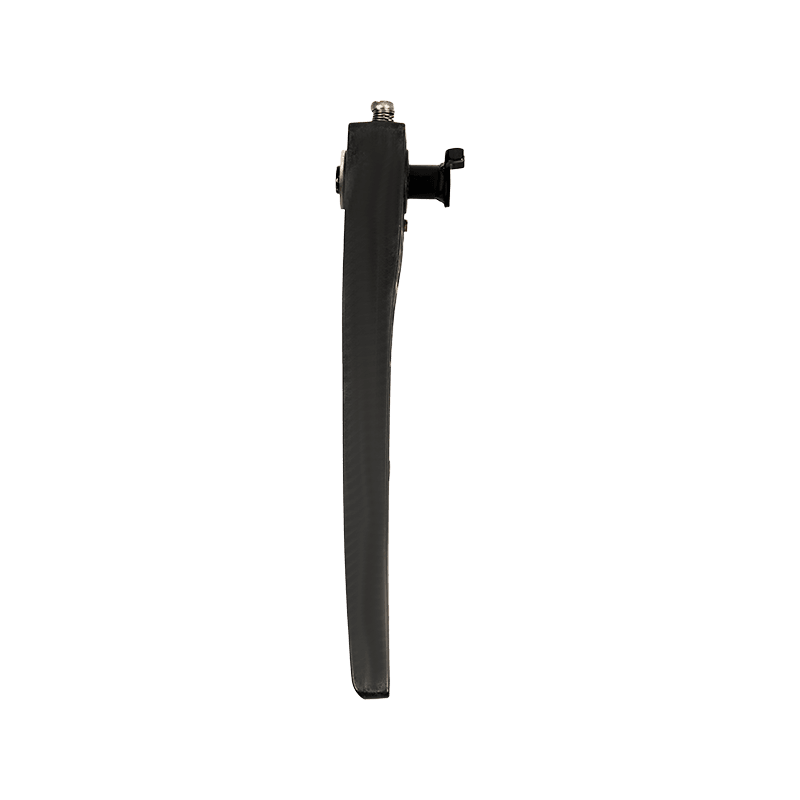

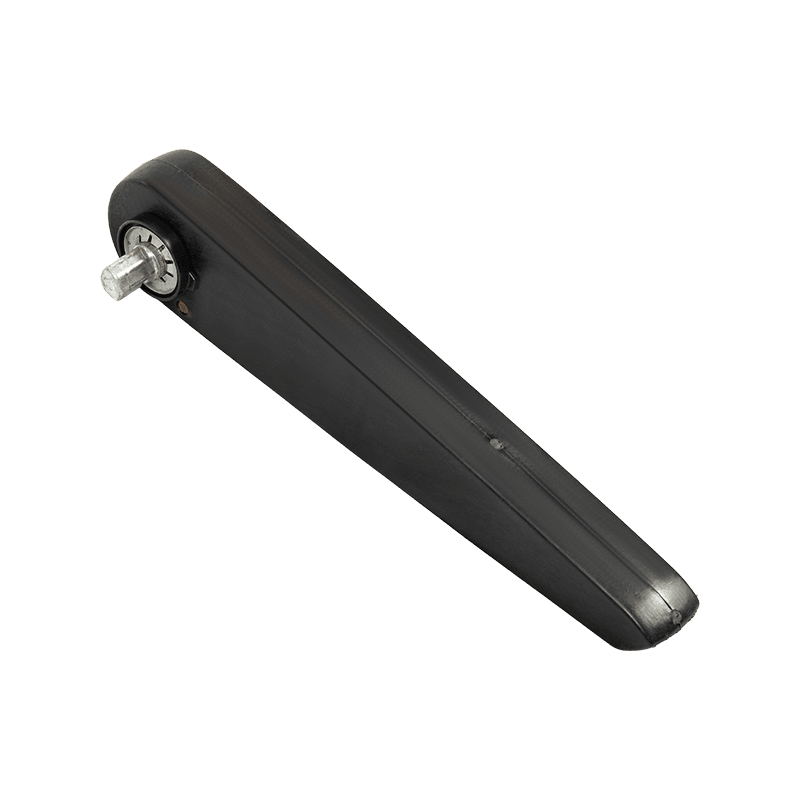

Automotive Front Seat Side-Mounted Armrest Internal Support Frame Assembly
This component serves as the core internal support frame for side-mounted front seat armrests in passenger vehicles. Molded as a high-strength integrated plastic structure, it embeds directly inside the PU armrest foam to function as the primary load-bearing matrix. It integrates rotational hinges, angle locking devices, and flip limit stops, enabling the armrest to fold upward out of the way, lower into a supportive position, and lock across multiple inclination angles. Designed to relieve upper-body fatigue during long-distance driving, it fits driver and passenger independent seat armrests in passenger vehicles.
-
Mechanical Load-Bearing Performance
Maintains rated static load at the horizontal operating position with zero permanent bending or plastic deformation; Resists long-term arm pressure without sagging.
Opening & Closing Durability
10000 cycles or higher of flip-unlock and angle-adjustment testing; Hinge remains free of loosening; Ratchet pawls exhibit zero wear or slippage; Prevents automatic drooping or shaking on bumpy roads.
Downward Operating Range
Multi-position notch locking to match comfortable arm support angles for occupants of various heights.
Upward Stowing Position
Can be flipped fully upright and locked into place.
Environmental Adaptability
Operating range -40 to 90 degrees C; Coating layer remains free from cracking or shedding; Internal spring tension stays stable without mechanism jamming or noise; No internal rust or friction noise when embedded inside foam.
