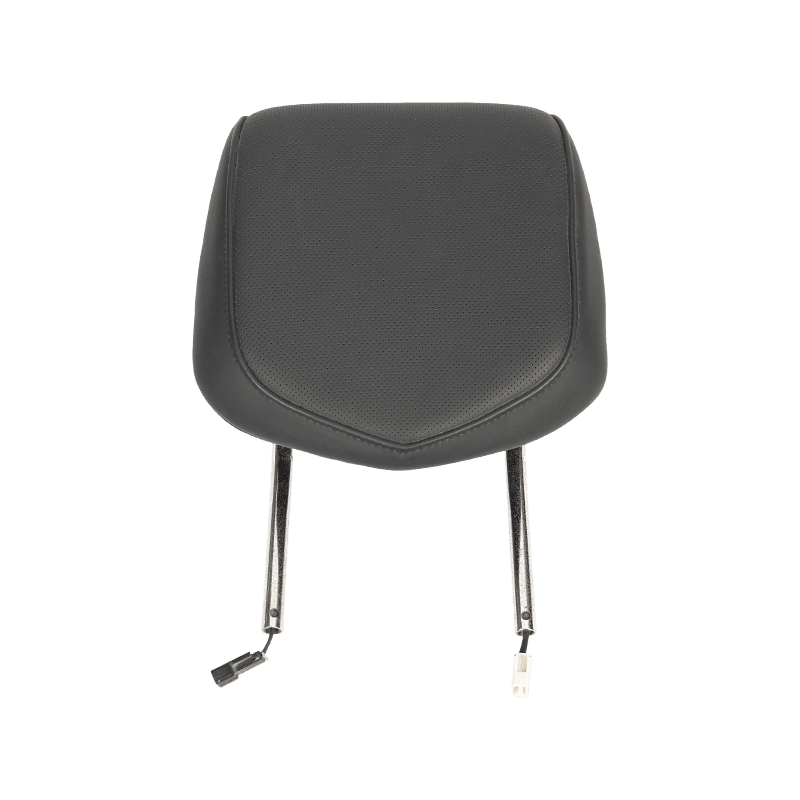

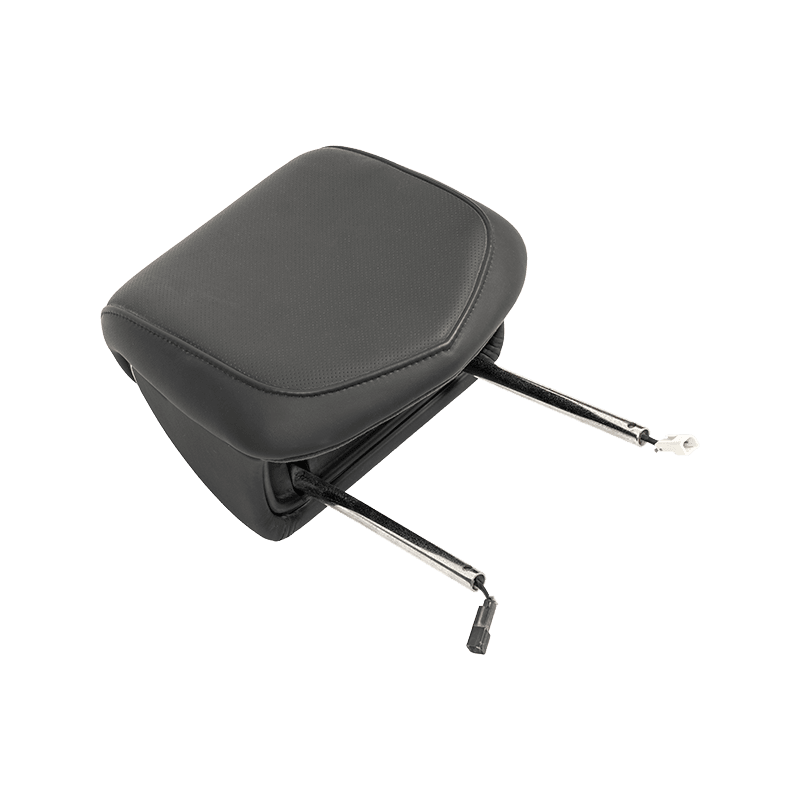

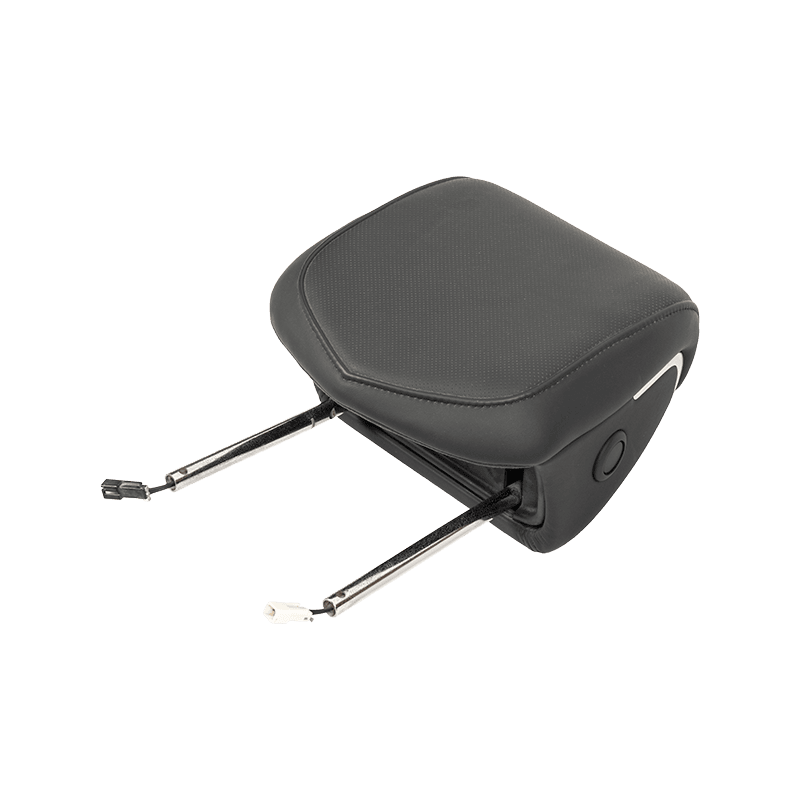

Automotive Cable-Controlled Foldable Rear Seat Headrest Assembly

This specialized automotive headrest assembly features an advanced pull-cable transmission mechanism that allows smooth angular folding and stowing. Wrapped in sleek black leather, it is equipped with dual metal mounting rods for stable installation. Unlike conventional fixed-notch vertical headrests, this foldable mechanism provides flexible space-saving convenience and enhanced ergonomic adjustability. It is widely used in commercial vehicles, MPVs, and sedans for rear/front seat comfort retrofits and direct OEM replacement.

Parameter
Features

Cushion Material	Automotive-grade high-density PUR polyurethane foam.
Foam Density	60 kg/m³; Compression permanent deformation ≤ 9% (Resists collapse over long-term use).
Flame Retardancy Standard	Complies with national standard GB 8410-2018 for automotive interior flame resistance; Low VOC, non-pungent odor.
Optional Core Upgrade	Internal filler upgradable with composite slow-rebound memory foam to enhance head and neck pressure-relief contouring.
Support Notch Rod Material	45# quenched and tempered hollow round steel; Electroplated surface for anti-corrosion protection.
Support Rod Diameter	φ10 mm to φ16 mm (Universal passenger car standard specifications).
Dual Rod Center Distance	Mainstream 140 mm / 160 mm (Precision custom molded per vehicle data).
Adjustment Mechanism	Mechanical up-and-down notched positioning; Side push-button unlock mechanism.
Height Adjustment Travel	Approx. 90 mm travel range across 8 to 10 fixed notched positions; Secure locking prevents slipping or dropping.
Base Material	High-strength modified PP engineering plastic; High impact resistance and shatter-proof durability.

Key Features & Selling Points:
- Cable-Controlled Folding System: Driven by an internal cable mechanism to enable easy angle adjustment and complete forward folding when not in use, expanding rearward driver visibility.
- Sleek Black Leather Wrap: Fully upholstered in high-grade black leather to deliver a clean, modern aesthetic that blends with premium vehicle interiors.
- Heavy-Duty Dual Metal Posts: Supported by double metal mounting rods ensuring structural strength, smooth pivoting, and long-term durability under daily use.
- Ideal for Commercial & MPV Upgrades: Specially suited for business vans, MPVs, and passenger sedans looking to upgrade seating flexibility, passenger comfort, or replace factory folding assemblies.
