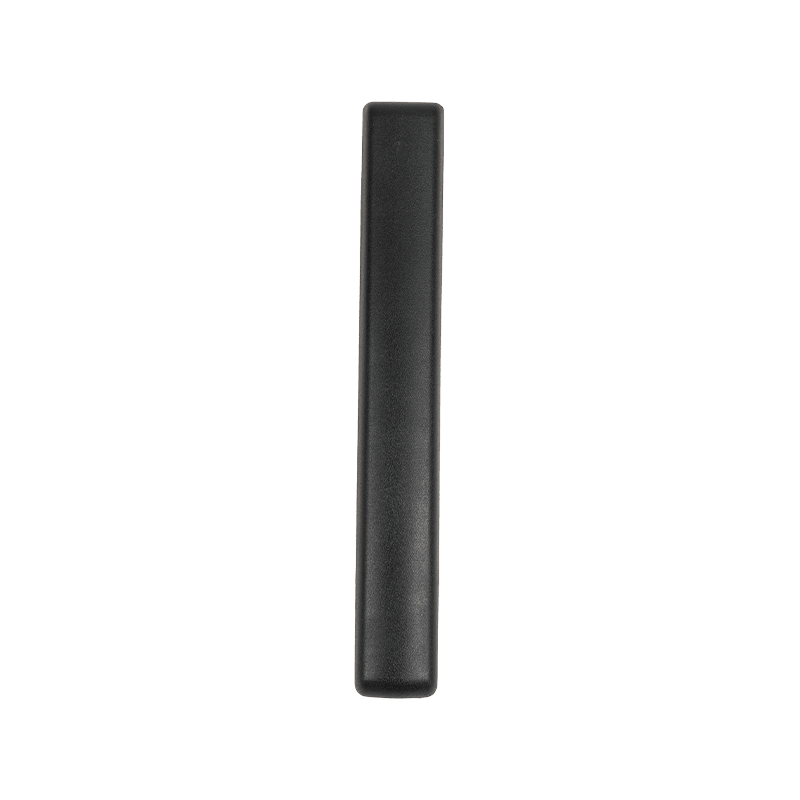

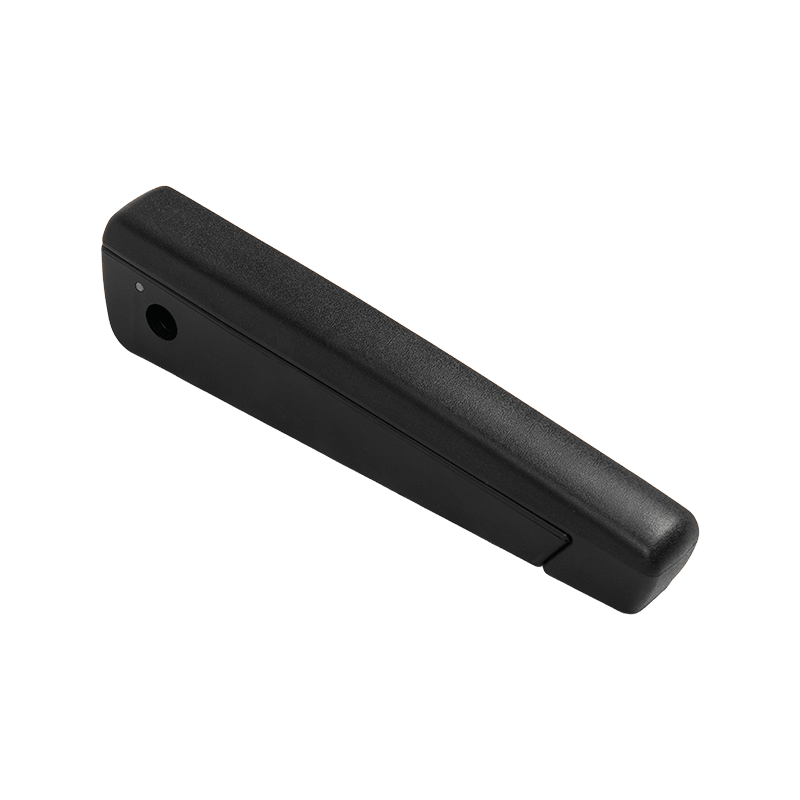

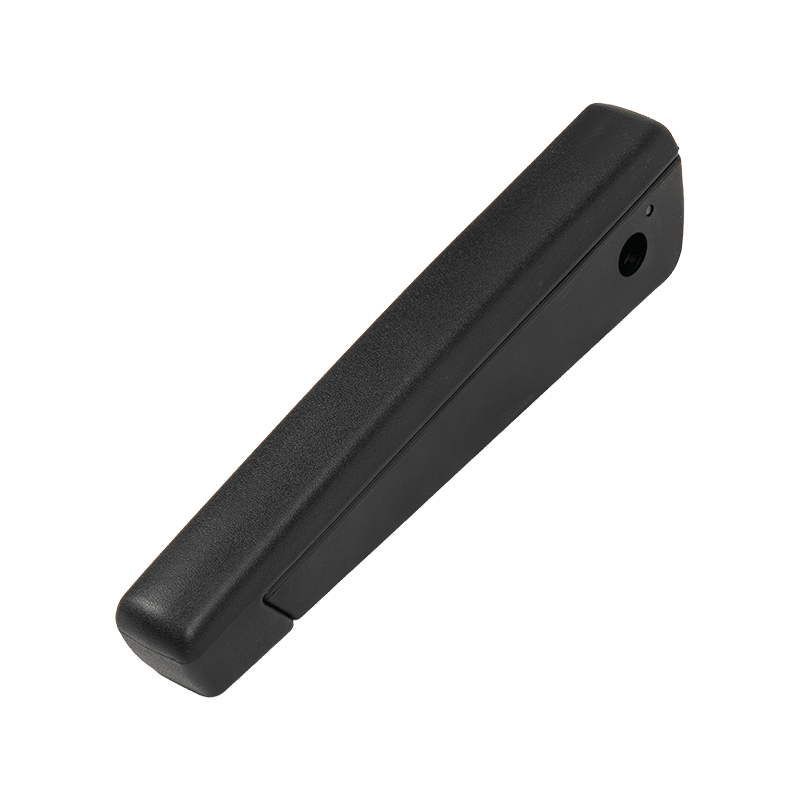

Heavy Duty Wear Resistant Integral Skin Foam Armrest Assembly

Built for heavy-duty commercial machinery and specialized automotive seating, this rectangular self-skinning foam armrest pad is engineered to withstand harsh operating environments. Featuring an ultra-durable outer skin that withstands severe abrasion without cracking or peeling, the pad returns quickly to shape after heavy compression. Reinforced with an internal steel frame, it provides high tear strength along all edges, ensuring long service life for commercial operators.
Extreme Abrasion Resistance: Passes 5,000-cycle surface friction testing without cracking, exposing base materials, or wearing down.

Parameter
Features

Outer Integral Skin Foam Layer	Density 450 to 600 kg/m3, Shore A 65 to 80; Wear-resistant, scratch-proof, pressure-resistant, and non-peeling.
Internal Foam Core Layer	Density 180 to 240 kg/m3, Shore A 35 to 45; Soft, supportive, and ergonomic arm cushioning.
Overall Assembly Average Density	200 to 280 kg/m3; Semi-rigid feel balancing structural strength with tactile comfort.
Abrasion Resistance	Withstands 5000 cycles of steel wool reciprocating friction without base exposure or cracking.
Compression Permanent Set	5% or lower (Tested at 50 degrees C under constant pressure for 22 hours); Resists permanent sagging.
Tear Strength	3.5 N/mm or higher; Prevents edge tearing during flexing, installation, or torque locking.
Resilience Rate	48% or higher; Rapid spring-back recovery after arm release with zero indentations.
Flammability Rating	GB 8410-2017 and FMVSS 302 automotive interior flammability compliant.
Odor & VOC Level	Grade 3 or lower low-VOC odor rating, meeting passenger vehicle eco-standards.
Operating Temperature	-40 to 90 degrees C; Non-sticky under summer sun exposure and non-brittle in extreme winter cold.
Humid-Heat Resistance	Passes 500 hours cycle testing at 70 degrees C and 95% RH without cracking, discoloration, or mold growth.
Stain Resistance & Cleaning	Dense, non-porous skin surface prevents liquid penetration and wipes clean easily with wet towels.

Structural Layering
- High Rebound Strength: Fast rebound rate (48% or higher) with permanent compression set under 5%, ensuring the cushion never flattens or sags permanently.
- Reinforced Edge Tear Strength: Tear strength of 3.5 N/mm or higher prevents edge cracking during installation or intense daily usage.
- Manufacturer Advantage: Direct factory supply with rigorous ISO quality testing, export-ready packaging, and dependable lead times for international distributors.
