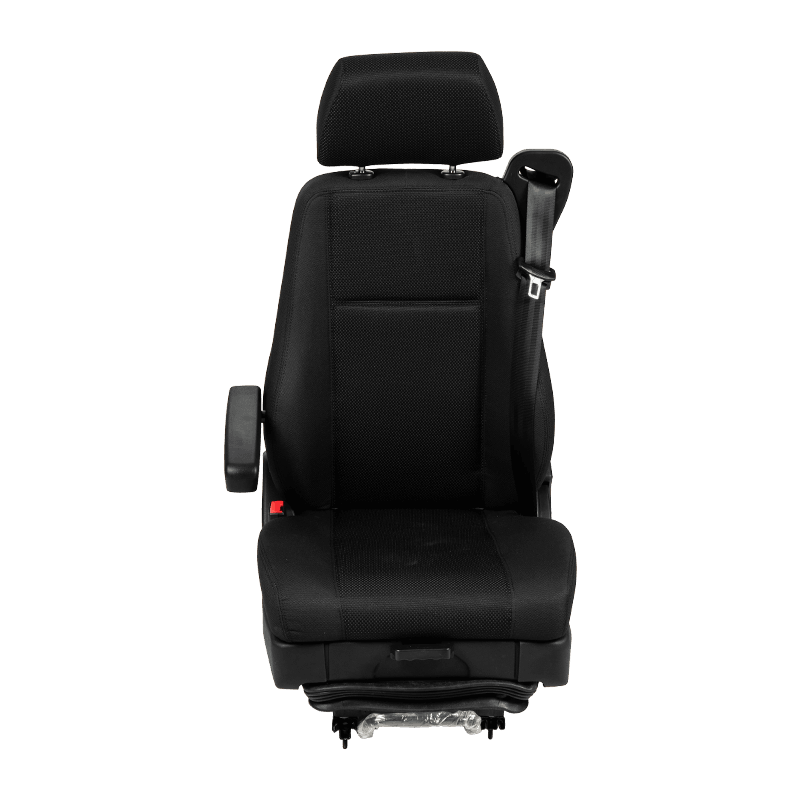

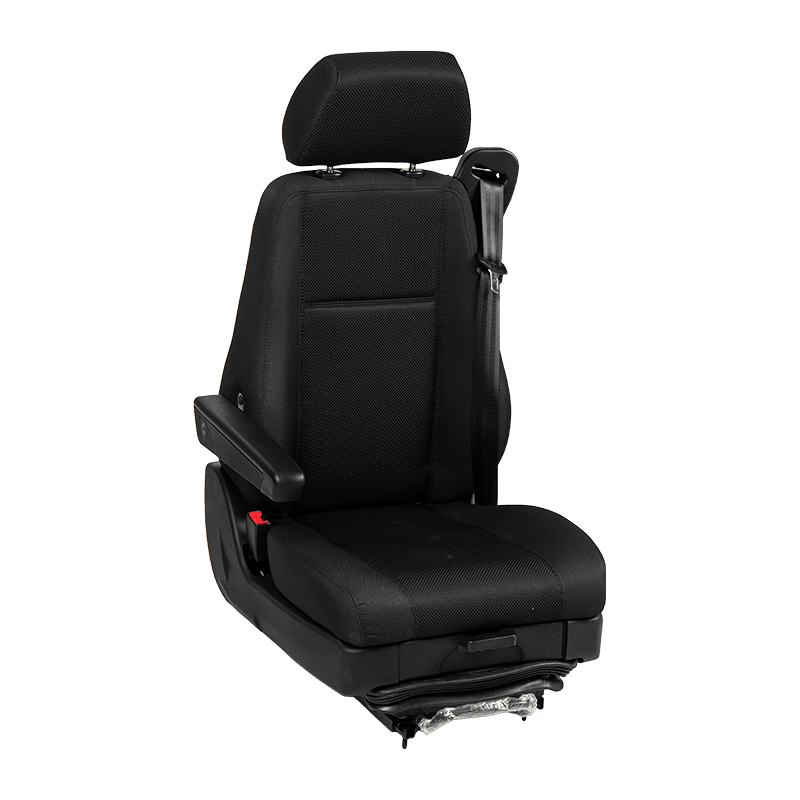

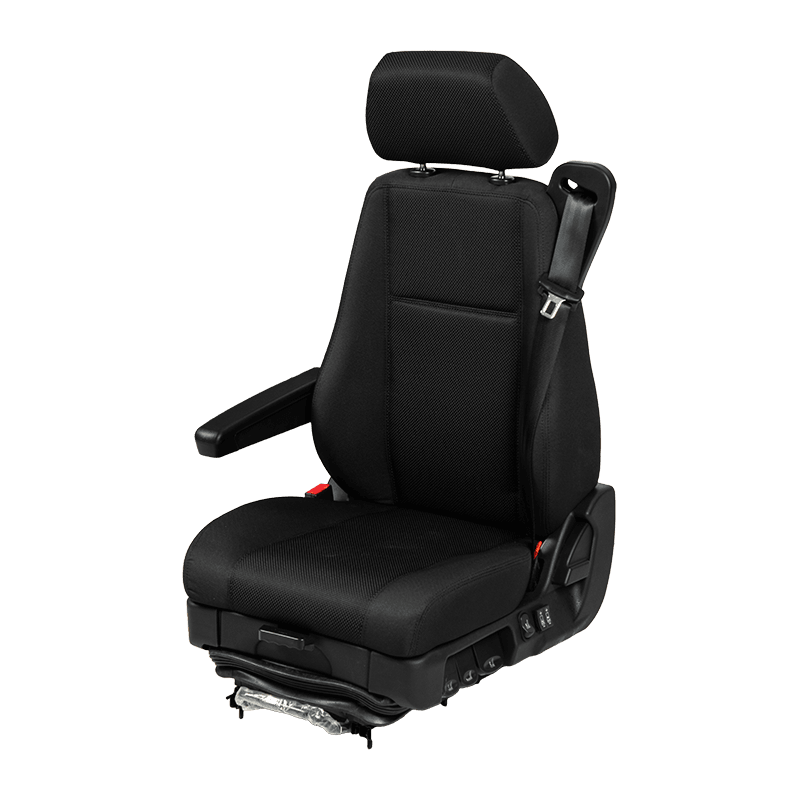

Heavy Commercial Vehicle Driver Seat Assembly with Integrated 3-Point Safety Belt

This driver seat assembly is engineered specifically for commercial vehicles, featuring a fully integrated 3-point safety belt mechanism where the belt retractor is built directly into the backrest structure. Equipped with a single-side fixed armrest, an independent adjustable headrest, and basic fore-aft sliding and backrest recline manual controls, it can be configured with either a mechanical spring base or an air airbag floating suspension base. Compatible with the full range of Dongfeng heavy trucks, medium trucks, engineering dumpers, sanitation vehicles, truck-mounted cranes, and special modified vehicles, it serves as an ideal solution for OEM vehicle lines, aftermarket replacement upgrades, and export commercial vehicle fleets. Upholstered in durable all-black wear-resistant fabric, its integrated belt structure eliminates the need to drill upper pillar mounting points on the truck body, enabling faster installation and superior structural safety.

Parameter
Features

Seatbelt Configuration	Seat-integrated 3-point safety belt assembly (Retractor built directly into the backrest frame).
Basic Adjustment Functions	Fore-aft slider movement, multi-position backrest recline control.
Backrest Recline Adjustment Angle	90° to 118° mechanical self-locking range.
Standard Accessories	Independent adjustable headrest, single-side fixed armrest, complete 3-point seatbelt assembly.
Rated Safe Load Capacity	160 kg.
Installation Method	4-point floor bolt mounting in the cabin floor.
Optional Base Configurations	Mechanical spring suspension / Air airbag floating suspension bases.

Key Features & Selling Points:
- Integrated 3-Point Safety System: Features a seat-mounted 3-point belt retractor that moves with the driver, eliminating external B-pillar drilling and maximizing occupant safety during sudden braking.
- Modular Base Compatibility: Flexible mounting frame supports both mechanical spring damping and pneumatic air suspension bases to match different chassis specifications and road conditions.
- Ergonomic Manual Controls: Provides effortless fore-aft track movement and a 90°–118° multi-step mechanical recline mechanism, allowing drivers to quickly find an optimal driving posture.
- Heavy-Duty Wear-Resistant Fabric: Upholstered in premium all-black commercial-grade fabric built to withstand high daily friction, dirt, and heavy-duty usage.
- Universal OEM Fleet Fit: Fits standard 4-point floor mounting holes across major commercial truck cabins, simplifying seat upgrades and export fleet retrofits.
