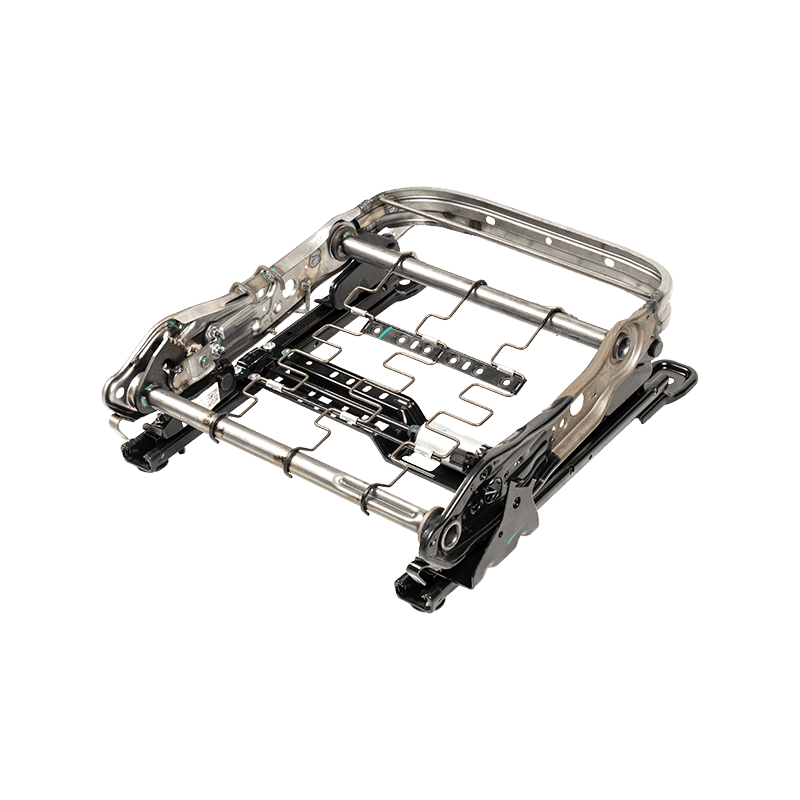

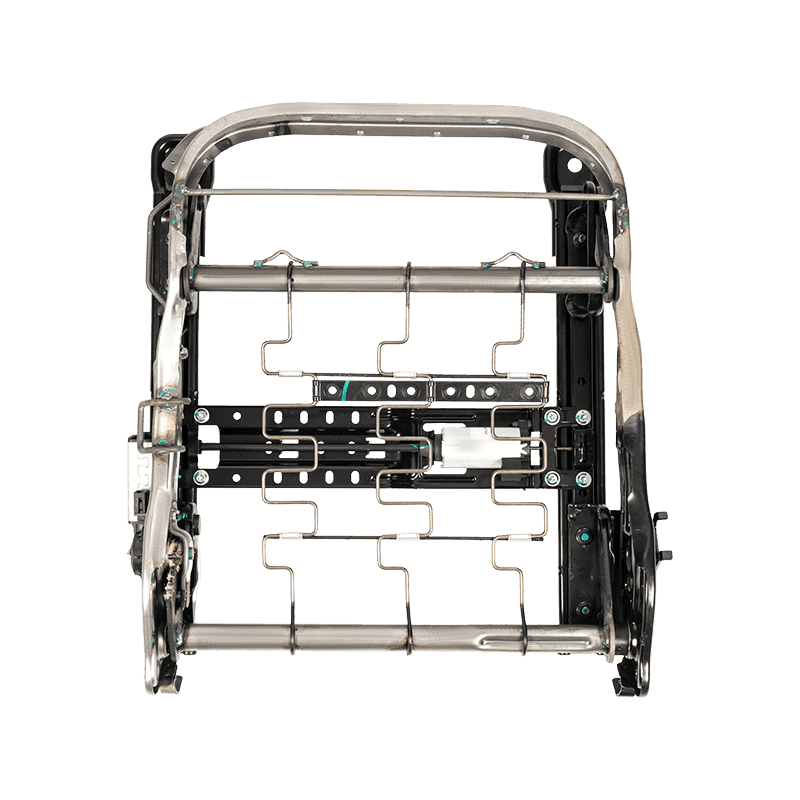

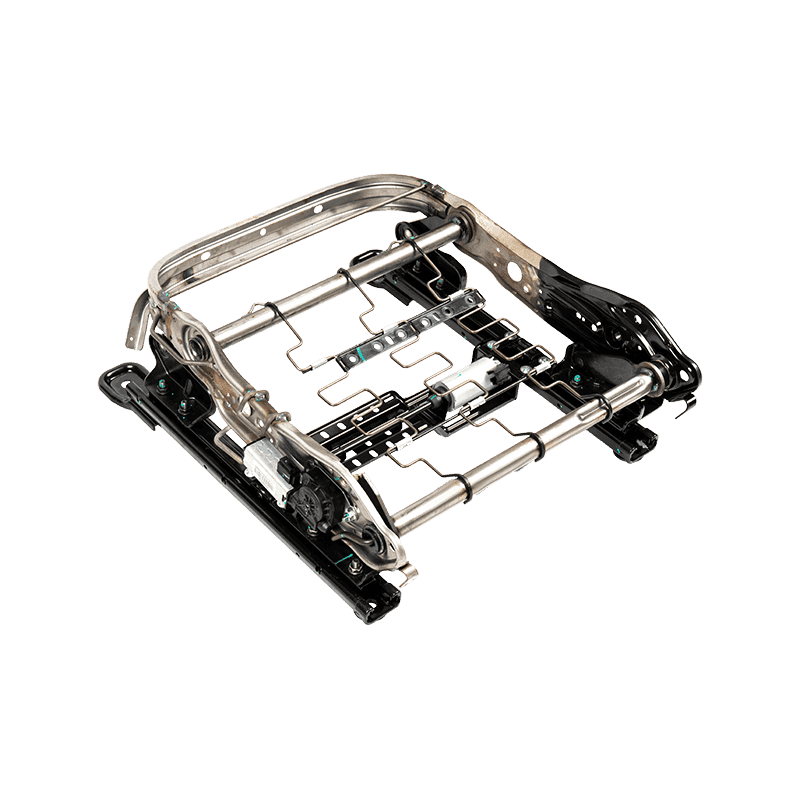

Automotive Power Front Seat Cushion Steel Frame Assembly with Integrated Slide Rail
This power seat cushion steel frame assembly is engineered as the core load-bearing base structure for front-row driver and passenger seats in mid-to-high-end passenger vehicles. Integrating multi-set DC drive motors, a four-bar height elevation mechanism, fore-aft sliding tracks, and an S-shaped spring suspension grid, it works with vehicle electronic control systems to deliver integrated multi-directional seat adjustment. It matches with electric backrest frames and molded foam cushions for both OEM vehicle assembly and aftermarket seat upgrade programs across ICE and new energy vehicles.
-
Cushion Main Frame
Q235 cold-rolled steel tubing, wall thickness 1.4 to 1.7 mm; Full immersion electro-coating anti-rust treatment; Neutral salt spray test 480 hours or higher, resisting cabin moisture, heat, and vapor corrosion.
S-Type Support Springs
65Mn manganese spring steel wire, wire diameter 3.0 to 3.6 mm; Heat-treated, quenched, and tempered; High fatigue resistance and long-term tension retention without sagging.
Transmission Gear & Four-Bar Linkage Bracket
Thickened stamped steel plate and alloy structural steel; High-frequency induction hardened gear teeth for wear resistance and anti-chipping performance.
Buffer & Anti-Vibration Rubber Components
EPDM aging-resistant rubber material; Resistant to high and low temperatures and ozone aging; Long-term durability without cracking or hardening over prolonged use.
-
Key Features & Selling Points:
- Heavy-Duty Electro-Coated Frame: Constructed from Q235 steel tubing (1.4 to 1.7 mm wall thickness) withstanding over 480 hours of neutral salt spray testing for superior corrosion resistance.
- Integrated Multi-Directional Power Adjustment: Combines smooth 35 to 60 mm vertical elevation and 180 to 240 mm fore-aft sliding driven by quiet, IP54 dust and water-resistant 12V DC motors.
- High-Strength Hardened Gear Transmission: Features alloy structural steel gears treated with high-frequency induction hardening to prevent gear tooth wear or chipping under heavy loads.
- Fail-Safe Mechanical Self-Locking: Withstands up to 1500 N static pressure without position slippage, ensuring driver safety during motion and braking.
- Long Service Life & Quiet Operation: Equipped with anti-aging EPDM rubber buffer sleeves to eliminate operational noise, rated for over 15000 start-stop cycles per motor unit.
