Ambulance Compartment Side-Mounted Folding Escort Seat Assembly

This complete folding seat assembly is engineered for medical transport compartments, designed to be mounted along idle side walls to provide seating for accompanying paramedics and caregivers. Built with an adjustable backrest and an upward tip-up seat mechanism, it folds tightly against the wall when not in use to optimize interior cabin space—ensuring unobstructed stretcher passage and swift emergency medical operations. It serves as a standard escort seating solution for various medical vehicle conversions (including Iveco, Maxus, Foton, Mercedes-Benz, and other major chassis models), fully compliant with national ambulance modification standards and international export procurement specs.

Parameter
Features

Overall Seat Height	Standard 720 mm; Adjustable range 650 mm to 780 mm.
Effective Cushion Dimensions (W x D)	Standard 420 mm x 380 mm; Range 380 mm to 450 mm.
Effective Backrest Height	Standard 480 mm; Range 430 mm to 520 mm.
Seat Cushion Foam Thickness	Standard 40 mm; Range 30 mm to 50 mm.
Backrest Foam Thickness	Standard 35 mm; Range 25 mm to 45 mm.
Backrest Recline Adjustment Angle	90° to 115° (supports positions from upright seating to reclined rest mode); Angle range fine-tunable as needed.
Cushion Folding Mechanism	Upward 90° tip-up folding with backrest lock mechanism; Fixed 90° tilt angle.
Rated Safe Load Capacity	150 kg (engineered for standard adult medical personnel).
Net Unit Weight	Approx. 7.5 kg to 8.2 kg (varies based on skeleton frame wall thickness adjustments).
Installation Method	Base flange bolts securely onto the ambulance cabin interior mounting bracket. Non-destructive installation requiring no drilling into original vehicle sheet metal; fully adaptable to custom vehicle mounting brackets.

Key Features & Selling Points:
- Space-Saving Tip-Up Design: Features a 90° vertical flip-up seat cushion with an integrated backrest lock, rapidly freeing up floor space for unobstructed stretcher loading and movement.
- Ergonomic Recline Comfort: Backrest reclines smoothly between 90° and 115°, allowing medical personnel to switch effortlessly between an active upright posture and a relaxed resting position during long transit runs.
- Heavy-Duty & Lightweight Construction: Reinforced structural frame supports a safe workload of up to 150 kg while maintaining a lightweight footprint (7.5–8.2 kg) for optimal vehicle fuel efficiency.
- Non-Destructive Flange Mounting: Mounts securely via a bottom flange directly onto pre-fitted cabin brackets, protecting original chassis sheet metal from alteration and simplifying vehicle conversion workflows.

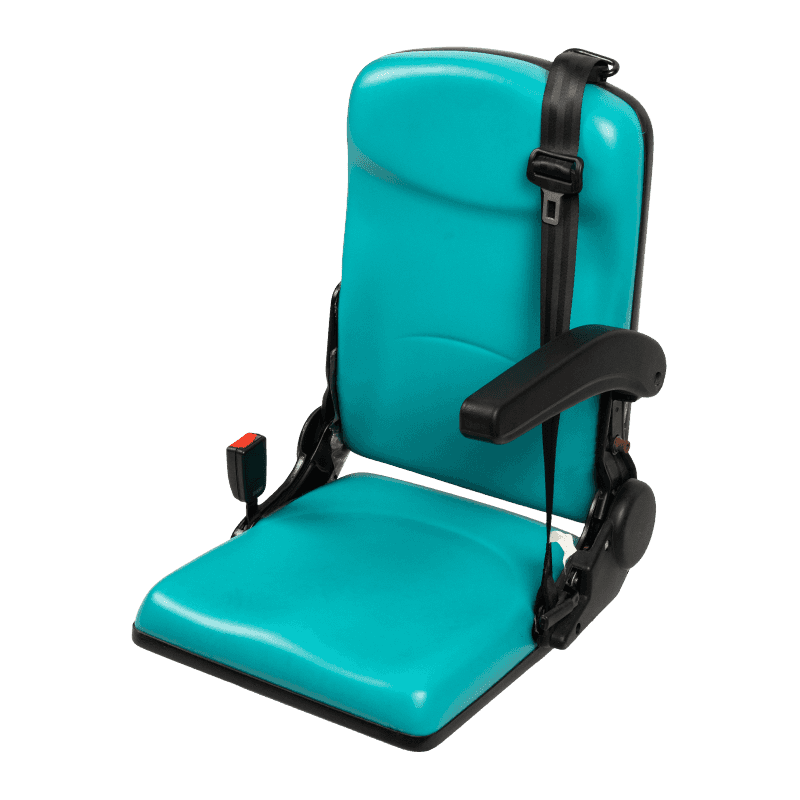

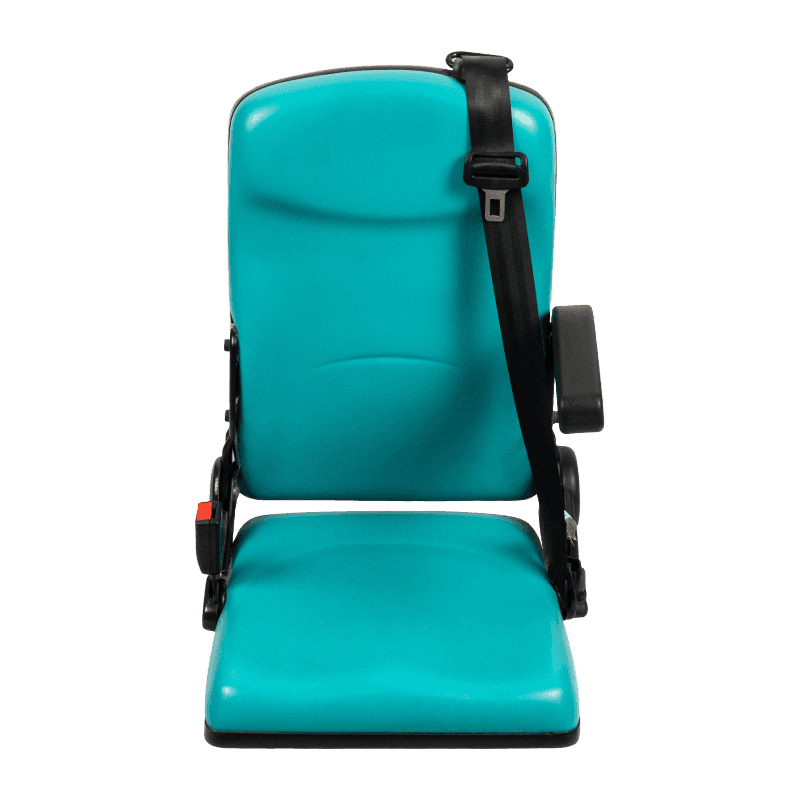

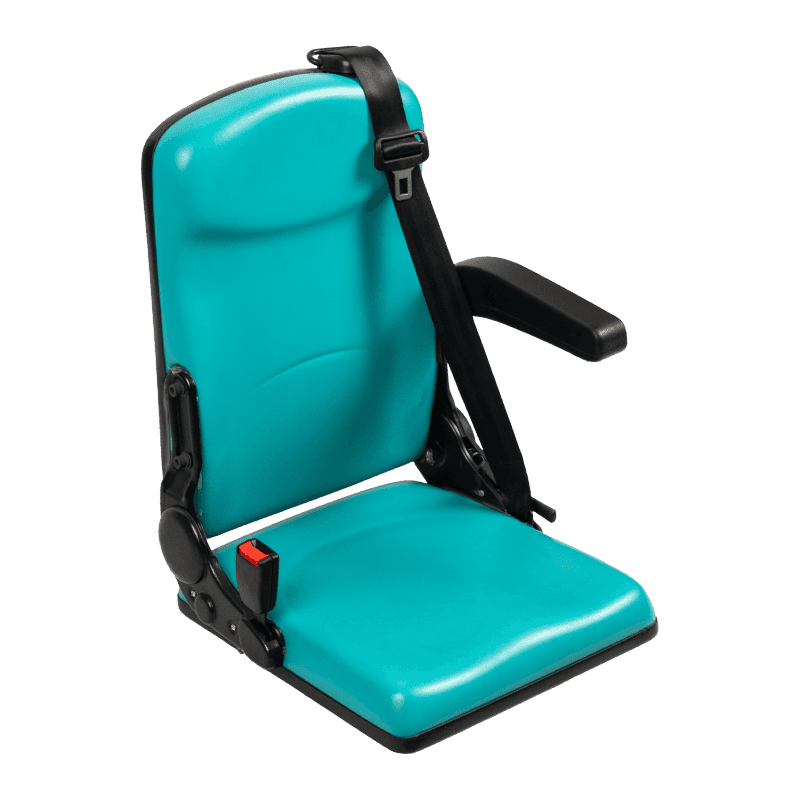

- Complete Integrated Assembly: Comes equipped with a standard 3-point safety seatbelt, side armrest, unlock adjustment handle, and medical-grade teal interior color scheme, offering a fully integrated, turn-key seating solution for OEM and aftermarket vehicle retrofits.
