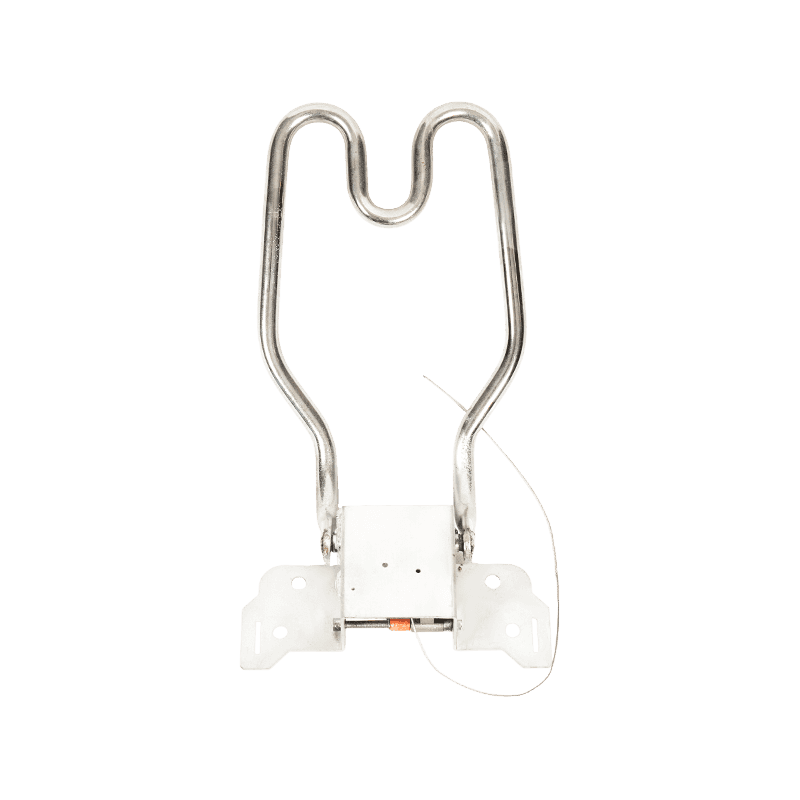

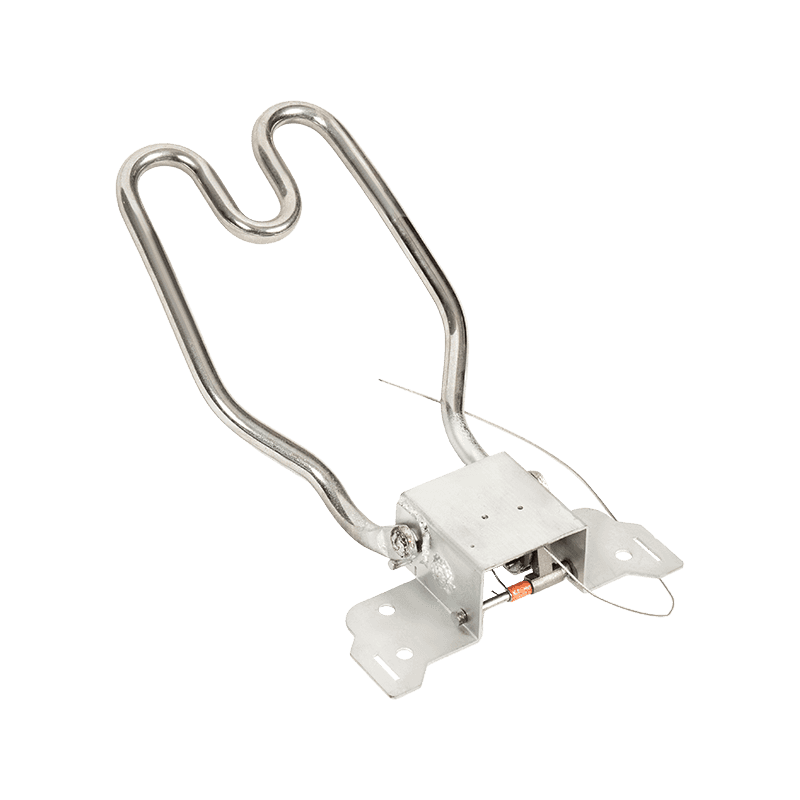

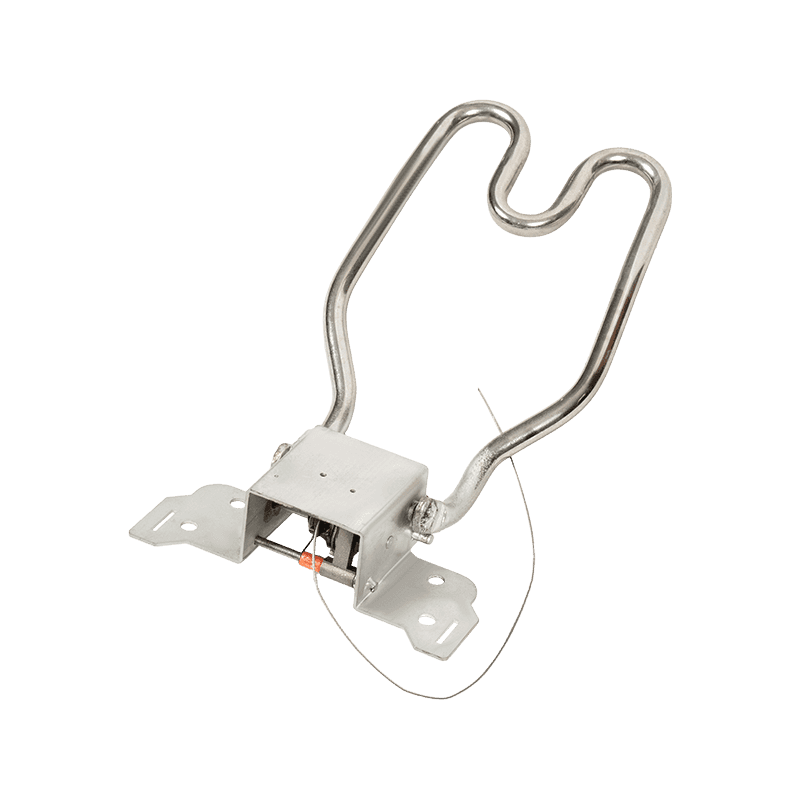

Automotive Multi-Angle Adjustable Seat Headrest Internal Frame Assembly
This assembly is a dedicated internal support frame engineered for independent forward and backward tilt angle headrest adjustment. Paired with hollow bent support rods and a metal adjustment locking base, it integrates sliding/swiveling lock mechanisms to add micro-positioning adjustments in the fore-aft direction on top of standard vertical elevation. Commonly used in front seats of mid-to-high-end passenger vehicles, it contours to varying neck curvatures, optimizes head support contact points, mitigates whiplash injuries during rear-end collisions, and enhances long-distance travel comfort.
-
Tilt Angle Adjustment Range
Forward 5 to 18 degrees, backward 0 to 10 degrees multi-stage notch adjustment; Fine notch spacing with precise support positioning.
Vertical Elevation Stroke
Standard 70 to 100 mm multi-notch locking.
Unlocking Press Effort
20 to 35 N operating force; Easy press actuation with crisp tactile feedback.
Tilt Angle Adjustment Life
10000 cycles or higher of unlock-swivel testing; Zero gear plate wear with secure pawl engagement and no position slipping.
Vertical Elevation Life
10000 cycles or higher of lift elevation; Zero slot collapse, wear, or slipping.
Vehicle Vibration Resistance
Passes 500 hours simulated vehicle bump testing; Lock mechanism experiences zero automatic disengagement and zero internal impact noise.
