Automotive Cable-Controlled 90-Degree Folding Seat Headrest Internal Frame Assembly

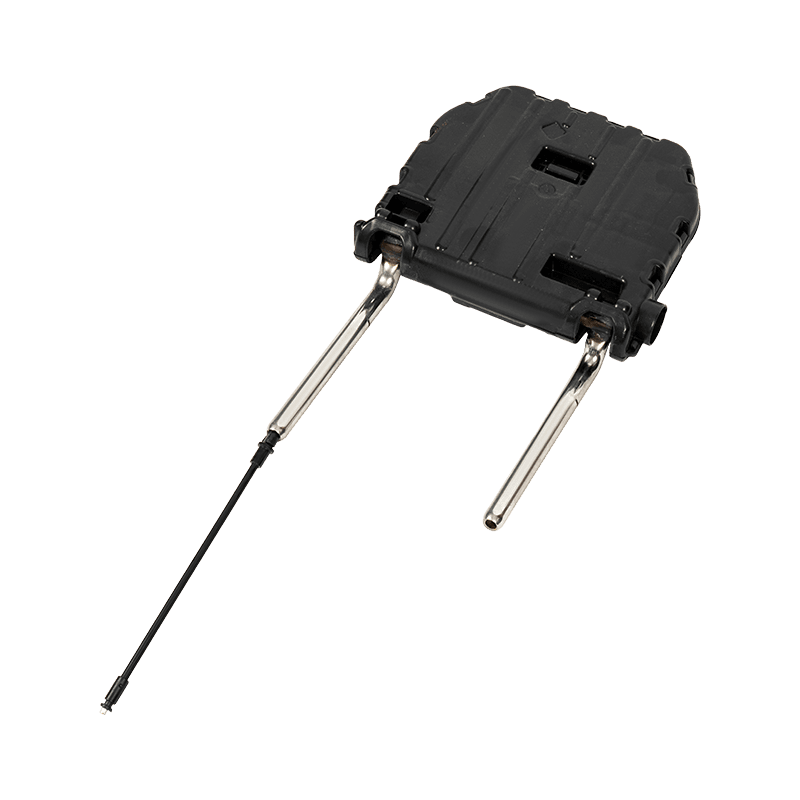

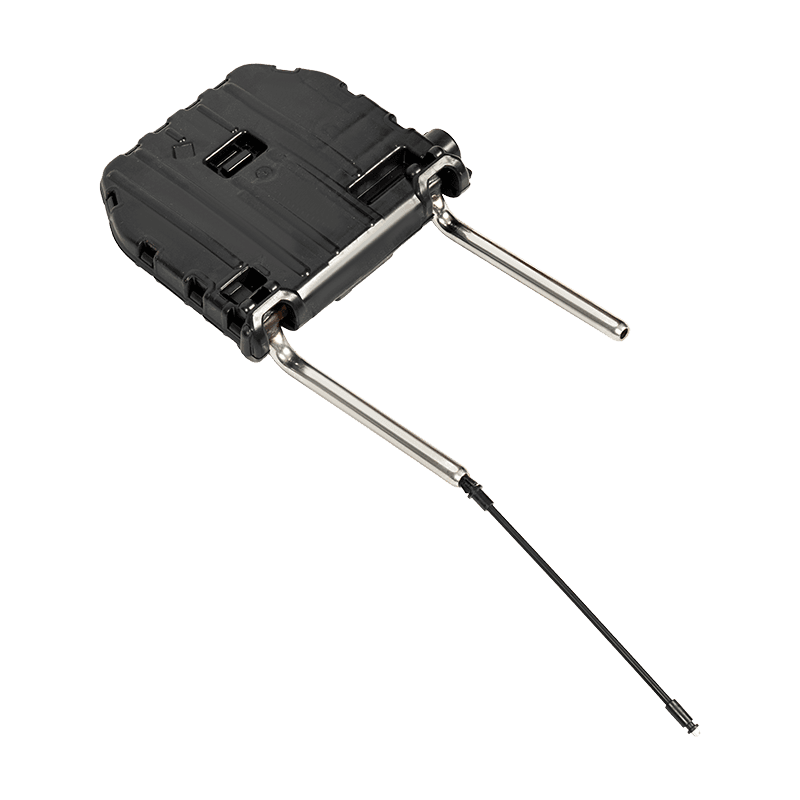

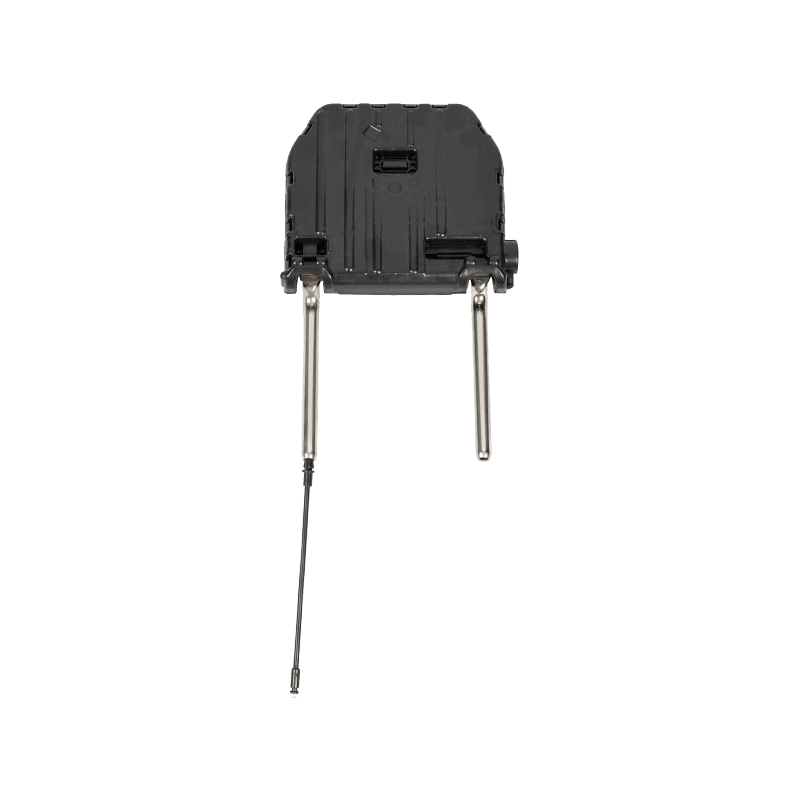

This assembly is a dedicated internal actuator mechanism for cable-controlled 90-degree folding vehicle seat headrests. Integrating a black engineered plastic locking base, chrome-plated headrest stay rods, and a cable-linkage release mechanism, it relies on remote cable control to unlock and fold the entire headrest 90 degrees backward flush against the backrest. Widely utilized in rear seats and MPV business seats, it folds the headrest down in tandem with backrest lowering to avoid cargo space interference and prevent interior trim collisions, combining standard vertical height adjustment with 90-degree fold-away storage.
-
Maximum Folding Angle
Precise 90 degrees backward folding with limit stops; Built-in mechanical limit stopper prevents over-rotation.
Unlocking Method
Cable-actuated remote mechanical unlocking; Cable pulling force 25 to 40 N for effortless operation.
Reset & Locking Method
Manual upright reset with automatic locking; Clear tactile click feedback upon lock engagement.
Folding & Unlocking Cycle
8000 cycles or higher of 90-degree folding and opening; Ratchet pawls and torsion springs suffer zero fatigue failure, maintaining firm lockup.
Vertical Elevation Positions
10000 cycles or higher of height adjustment with zero slot wear or slippage.
Vibration Resistance
Lock mechanism remains securely engaged under driving vibrations, preventing accidental headrest rotation.
