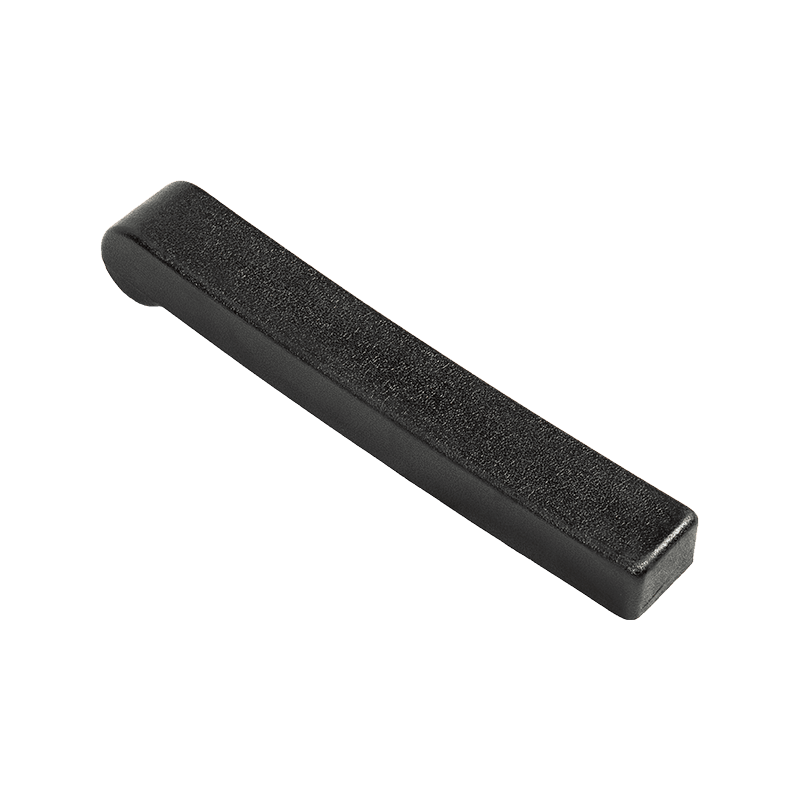

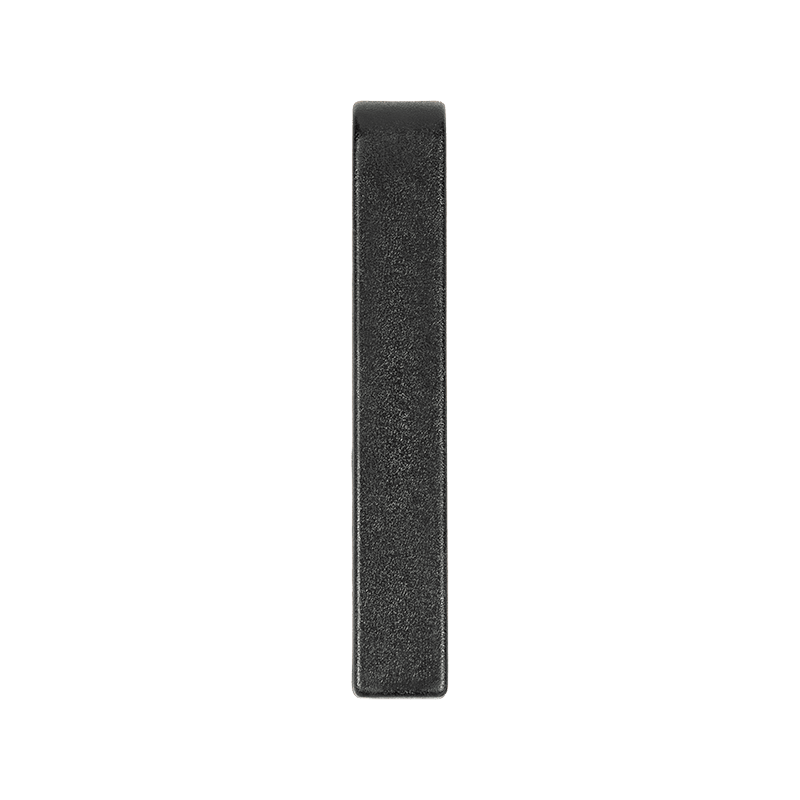

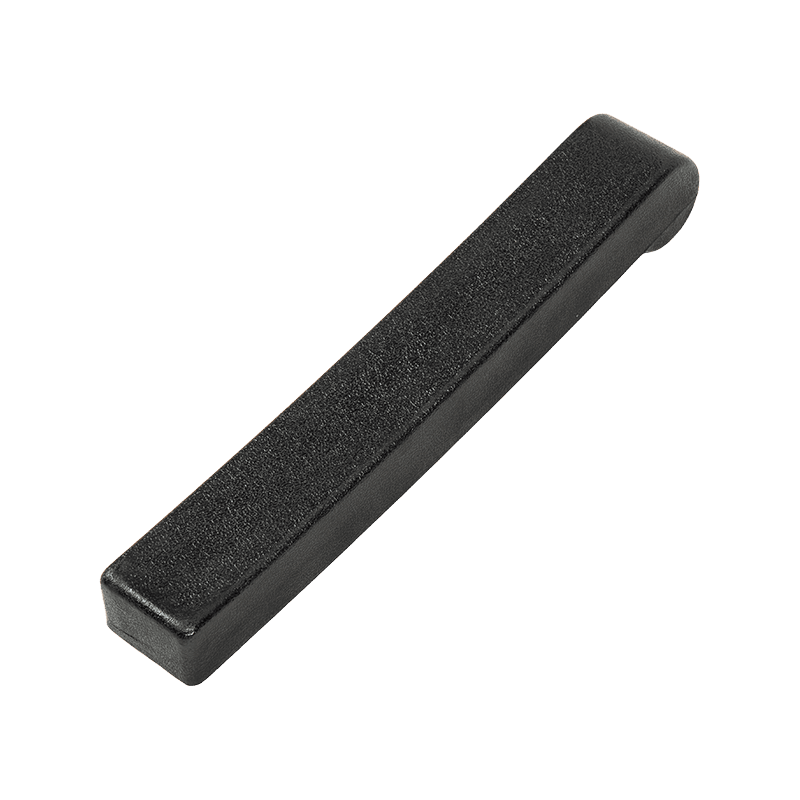

High Density Flexible PU Integral Skin Foam Armrest Pad

Engineered with an elongated profile, this high-density PU self-skinning armrest provides continuous, full-length support across the user’s forearm. The internal structural frame is custom-welded to handle high bending torques along the edges during heavy leverage. Produced using eco-friendly formulations, this long-bar pad offers excellent low-odor characteristics, uniform density, and clean aesthetic lines for premium vehicle interiors.

Parameter
Features

Outer Integral Skin Foam Layer	Density 450 to 600 kg/m3, Shore A 65 to 80; Wear-resistant, scratch-proof, pressure-resistant, and non-peeling.
Internal Foam Core Layer	Density 180 to 240 kg/m3, Shore A 35 to 45; Soft, supportive, and ergonomic arm cushioning.
Overall Assembly Average Density	200 to 280 kg/m3; Semi-rigid feel balancing structural strength with tactile comfort.
Abrasion Resistance	Withstands 5000 cycles of steel wool reciprocating friction without base exposure or cracking.
Compression Permanent Set	5% or lower (Tested at 50 degrees C under constant pressure for 22 hours); Resists permanent sagging.
Tear Strength	3.5 N/mm or higher; Prevents edge tearing during flexing, installation, or torque locking.
Resilience Rate	48% or higher; Rapid spring-back recovery after arm release with zero indentations.
Flammability Rating	GB 8410-2017 and FMVSS 302 automotive interior flammability compliant.
Odor & VOC Level	Grade 3 or lower low-VOC odor rating, meeting passenger vehicle eco-standards.
Operating Temperature	-40 to 90 degrees C; Non-sticky under summer sun exposure and non-brittle in extreme winter cold.
Humid-Heat Resistance	Passes 500 hours cycle testing at 70 degrees C and 95% RH without cracking, discoloration, or mold growth.
Stain Resistance & Cleaning	Dense, non-porous skin surface prevents liquid penetration and wipes clean easily with wet towels.

Structural Layering
- Full-Length Forearm Support: Elongated design provides uninterrupted arm rest surface for optimal long-distance driving comfort.
- High Bending Torque Capacity: Reinforced structural backbone prevents edge twisting or cracking under heavy downward weight.
- Low-Odor Interior Material: Uses clean, low-emission PU chemistry compliant with strict global automotive passenger cabin standards.
- Manufacturer Advantage: Strict ISO-certified production lines ensuring zero-defect batch consistency for global seat system integrators.
