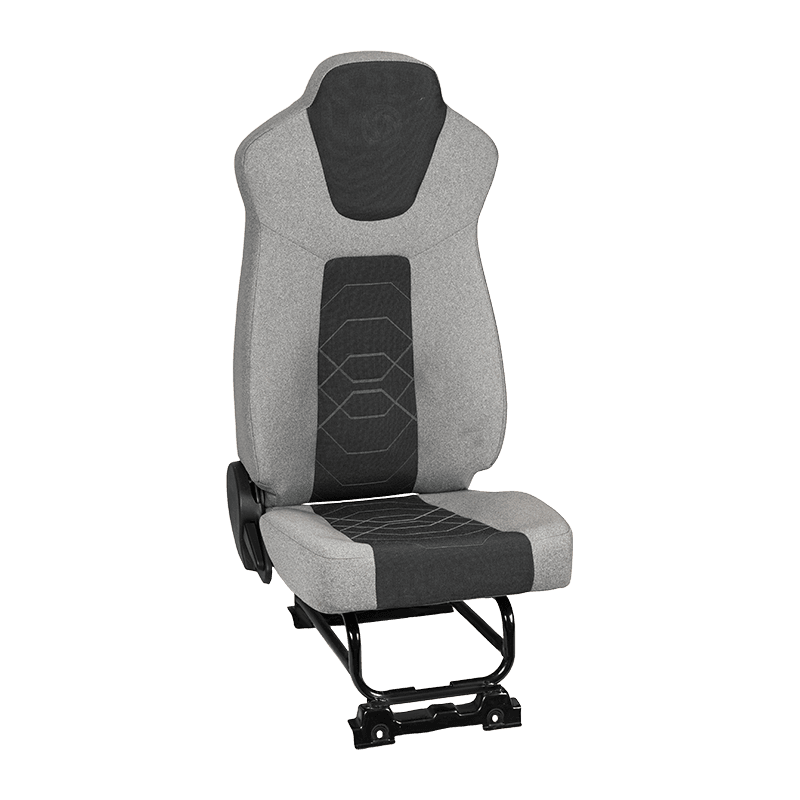

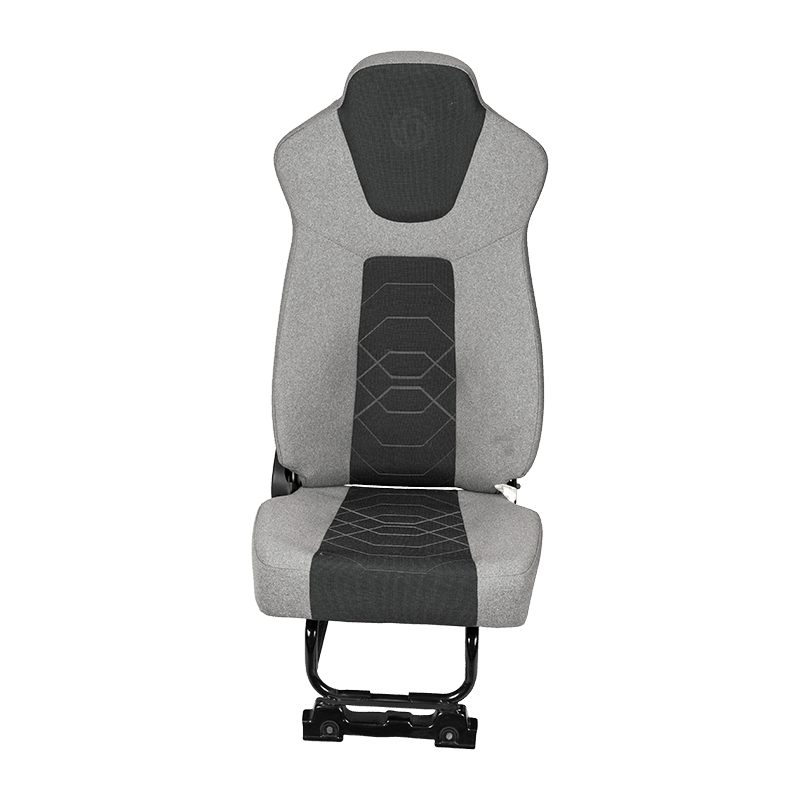

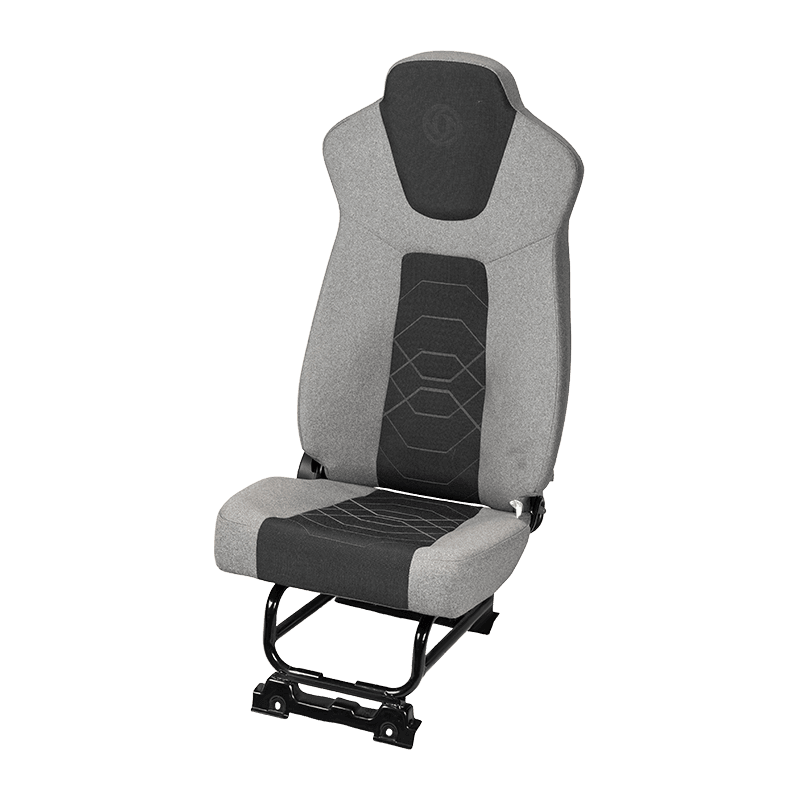

Commercial Truck & Sanitation Vehicle Fixed Base Passenger Seat Assembly
Specifically engineered as a fixed passenger seat for commercial heavy-duty, medium-duty, and light trucks, this model is also widely adapted for sanitation vehicles, engineering dump trucks, truck-mounted cranes, and box trucks. Featuring a rigid fixed-base structure without fore-aft slider rails, it simplifies mechanical complexity while providing reliable manual backrest recline positioning. Finished in factory-style grey and black woven fabric, it perfectly aligns with standard Dongfeng cabin interior tones. It is an ideal solution for OEM vehicle assembly, direct non-destructive replacement of worn seats, Dongfeng vehicle modifications, and export truck procurement projects.
-
Installation Method
Fixed base 4-point direct bolt-on mounting (No fore-aft slider track mechanism).
Backrest Recline Adjustment Angle
90° to 115° multi-position mechanical locking.
Effective Seat Cushion Dimensions
445 mm x 410 mm.
Rated Safe Load Capacity
160 kg.
Total Assembly Net Weight
11.8 kg to 12.8 kg.
-
Key Features & Selling Points:
- Rigid Fixed Base Design: Built with a sturdy, stationary mounting frame without slider rails, reducing mechanical play and enhancing structural stability during heavy work operations.
- Multi-Position Recline Locking: Features an adjustable backrest mechanism (90°–115°) that enables passenger seat customization for optimal ergonomic back support.
- Durable Factory-Grade Fabric: Upholstered in a heavy-duty grey and black spliced woven fabric that offers high breathability, wear resistance, and seamless aesthetic integration with commercial cabin interiors.
- Direct Non-Destructive Bolt-On Fit: Utilizes a standard 4-point floor bolt pattern, ensuring fast, straightforward mounting into factory original seating positions without frame alterations.
