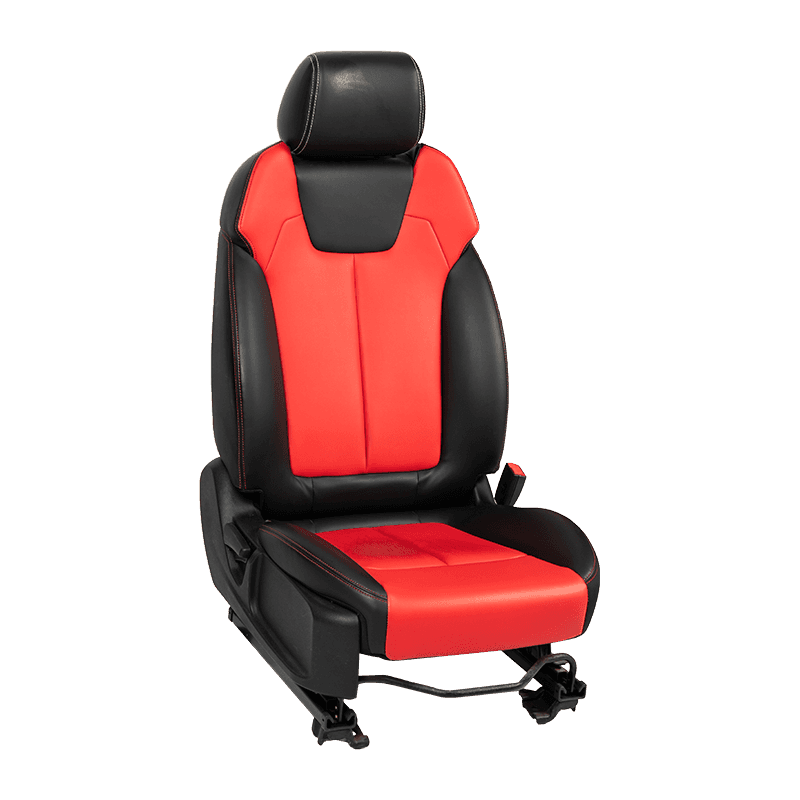

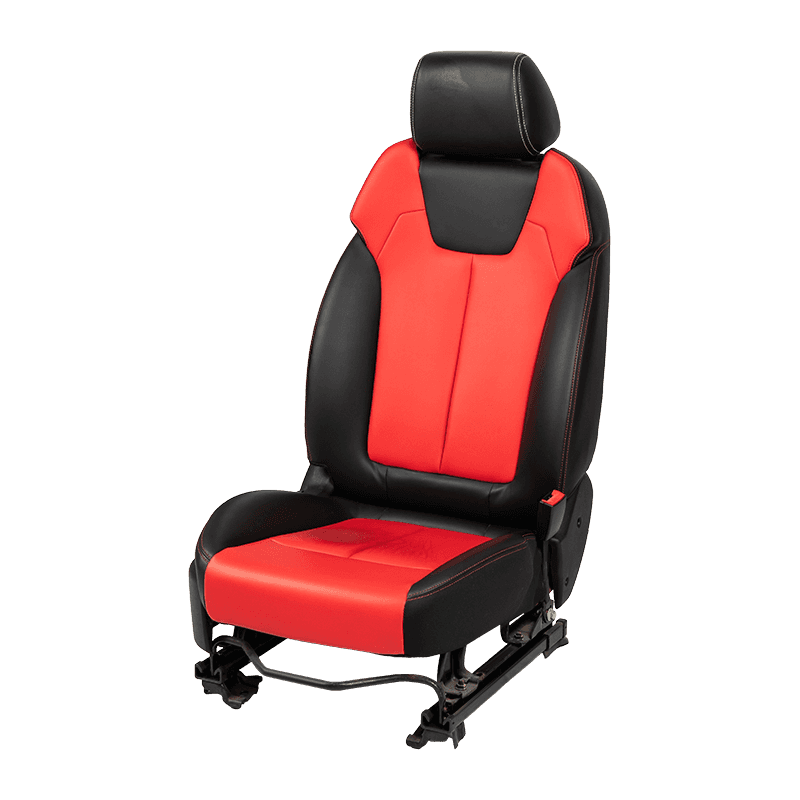

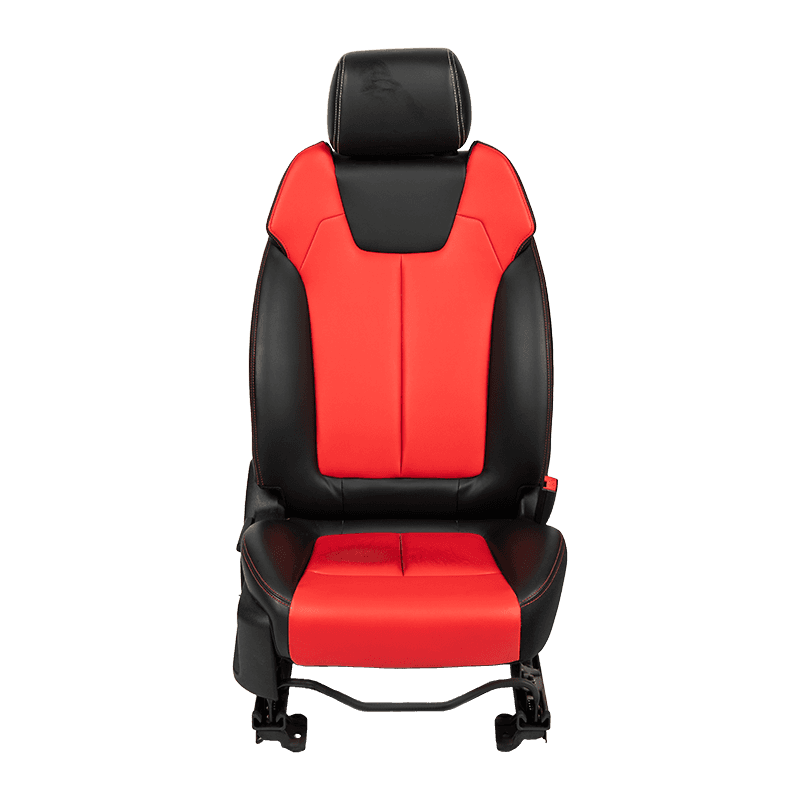

Passenger Vehicle & Pickup Truck Manual 4-Way Adjustable Driver Seat Assembly
This manual driver seat assembly features 4-way mechanical adjustment and comes equipped with an integrated detachable headrest for fuel-powered and new energy pickup trucks, urban SUVs, passenger cars, and light commercial vehicles. It provides essential manual controls across four key directions: fore-and-aft sliding track movement, seat cushion height adjustment, and backrest recline positioning. Tailored to ergonomic sitting postures, it balances daily commuting support, long-distance driving comfort, factory OEM assembly requirements, damaged seat replacement, interior upgrades, and foreign trade passenger vehicle supply. Covered in sporty red-and-black dual-tone leather with stitched zoning for optimal lumbar and lateral support, its styling aligns seamlessly with modern vehicle interior aesthetics.
-
Total Seat Height (Including Headrest)
Standard 1060 mm; Adjustable range 990 mm to 1120 mm.
Effective Seat Cushion Dimensions (W x D)
Standard 460 mm x 410 mm; Range 420 mm to 490 mm x 380 mm to 440 mm.
Seat Cushion Foam Thickness
Standard 48 mm; Range 38 mm to 60 mm.
Backrest Foam Thickness
Standard 40 mm; Range 32 mm to 52 mm.
Fore-Aft Slider Travel Range
Standard 180 mm; Range 110 mm to 220 mm.
Vertical Height Adjustment Travel
Standard 60 mm; Range 35 mm to 80 mm.
Backrest Recline Adjustment Angle
Standard 90° to 122° notched locking; Range 85° to 130° customizable.
Rated Safe Load Capacity
Standard 160 kg; Reinforced version up to 190 kg.
Assembly Net Weight
Approx. 12.8 kg to 14.2 kg (Slightly varies based on steel plate thickness).
Installation Method
4-point floor bolt mounting using factory base brackets; Adapts via vehicle-specific adapter brackets.
-
Key Features & Selling Points:
- Practical Manual 4-Way Control: Offers smooth mechanical adjustment for fore-aft positioning, cushion elevation, and recline angle to establish a comfortable driving posture.
- Ergonomic Segmented Support: High-resilience foam core and stitched contour zoning distribute body weight evenly to reduce fatigue during extended long-haul trips.
- Robust Structural Frame: High-strength steel skeleton rated for 160 kg (upgradable to 190 kg) ensures long-term structural integrity and driver safety.
- Sporty Red & Black Leather Finish: Wrapped in durable red-and-black dual-tone leather that delivers a dynamic aesthetic while offering high resistance to wear and abrasion.
- Direct Bolt-On Fitment: Features standard 4-point floor mounting with model-specific adapter brackets for effortless OEM line integration and aftermarket retrofits.
