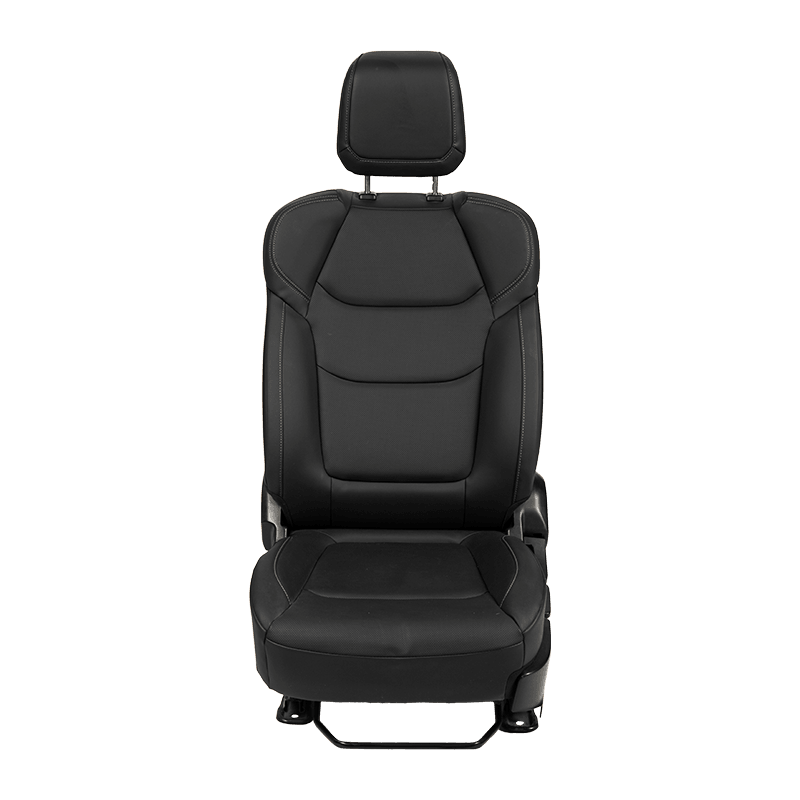

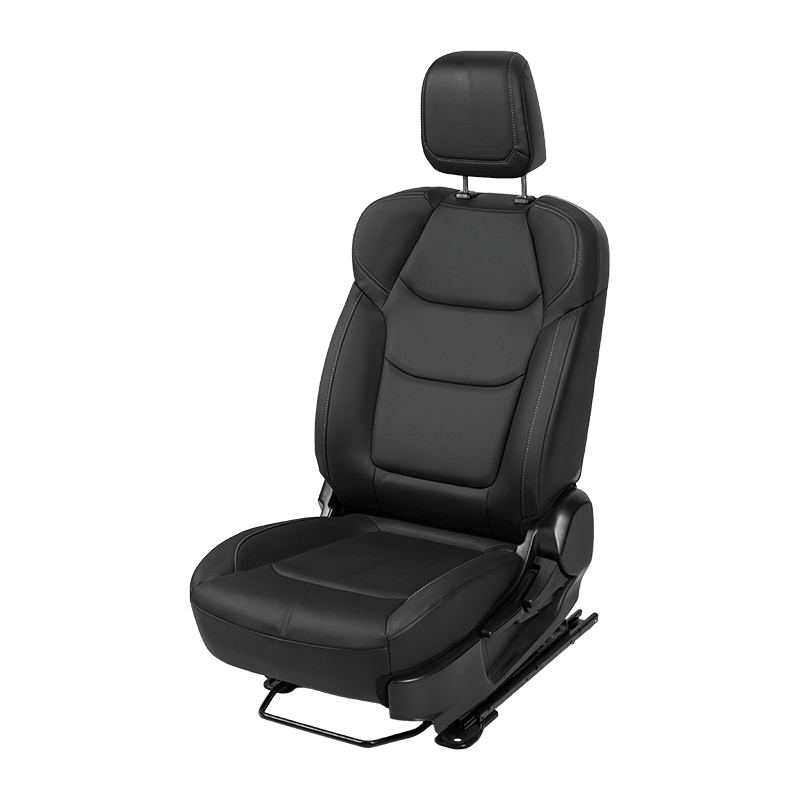

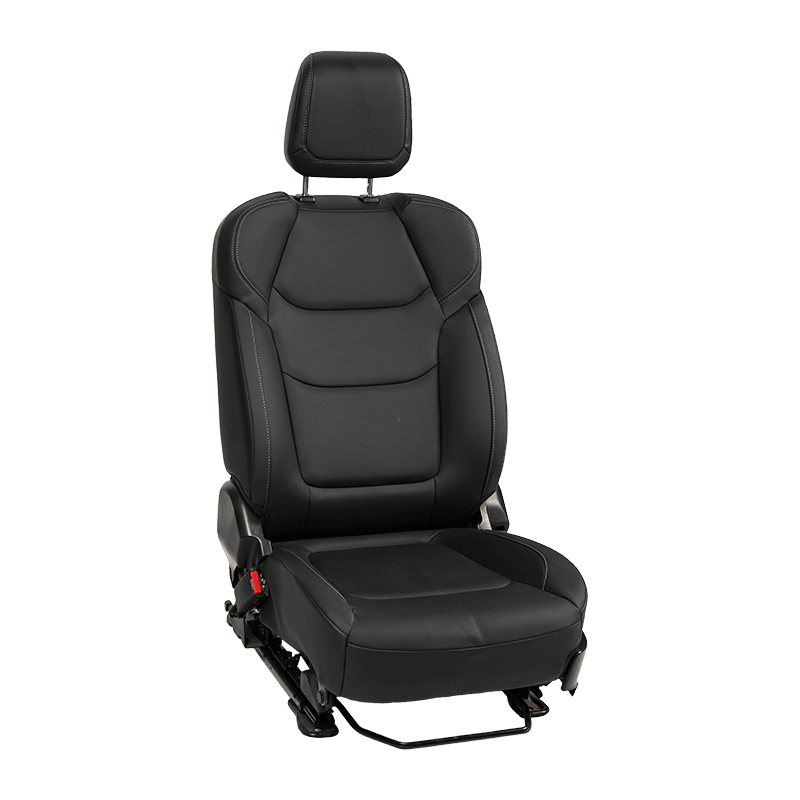

Passenger Vehicle & Pickup Truck Manual 6-Way Adjustable Driver Seat Assembly
This manual driver seat assembly features multi-directional mechanical adjustment and comes equipped with an integrated detachable headrest for fuel-powered and new energy pickup trucks, urban SUVs, passenger cars, and light commercial vehicles. It provides reliable manual controls: fore-and-aft sliding track movement, seat cushion height adjustment, and backrest recline positioning. Tailored to ergonomic sitting postures, it balances daily commuting support, long-distance driving comfort, factory OEM assembly requirements, damaged seat replacement, interior upgrades, and foreign trade passenger vehicle supply. Covered in premium brown leather with stitched zoning for optimal lumbar and lateral support, its styling aligns with mainstream vehicle interior design.
-
Total Seat Height (Including Headrest)
Standard 1060 mm; Adjustable range 990 mm to 1120 mm.
Effective Seat Cushion Dimensions (W x D)
Standard 460 mm x 410 mm; Range 420 mm to 490 mm x 380 mm to 440 mm.
Seat Cushion Foam Thickness
Standard 48 mm; Range 38 mm to 60 mm.
Backrest Foam Thickness
Standard 40 mm; Range 32 mm to 52 mm.
Fore-Aft Slider Travel Range
Standard 180 mm; Range 110 mm to 220 mm.
Vertical Height Adjustment Travel
Standard 60 mm; Range 35 mm to 80 mm.
Backrest Recline Adjustment Angle
Standard 90° to 122° notched locking; Range 85° to 130° customizable.
Rated Safe Load Capacity
Standard 160 kg; Reinforced version up to 190 kg.
Assembly Net Weight
Approx. 12.8 kg to 14.2 kg (Slightly varies based on steel plate thickness).
Installation Method
4-point floor bolt mounting using factory base brackets; Adapts via vehicle-specific adapter brackets.
-
Key Features & Selling Points:
- Smooth Manual 6-Way Adjustment: Allows drivers to manually customize fore-aft displacement, cushion elevation, and recline angle for an optimal driving posture.
- Ergonomic Segmented Cushioning: High-resilience foam core and stitched contour zoning distribute body pressure evenly to prevent fatigue during long-haul driving.
- Heavy-Duty Structural Frame: Reinforced steel skeleton rated for 160 kg (upgradable to 190 kg) ensures reliable stability and passenger safety under continuous daily use.
- Premium Brown Leather Upholstery: Durable leather cover combines an attractive luxury appearance with resistance to wear, tearing, and daily friction.
- Direct Bolt-On Fitment: Utilizes standard 4-point floor mounting with model-specific brackets, allowing straightforward installation for OEM vehicle lines and aftermarket retrofits.
