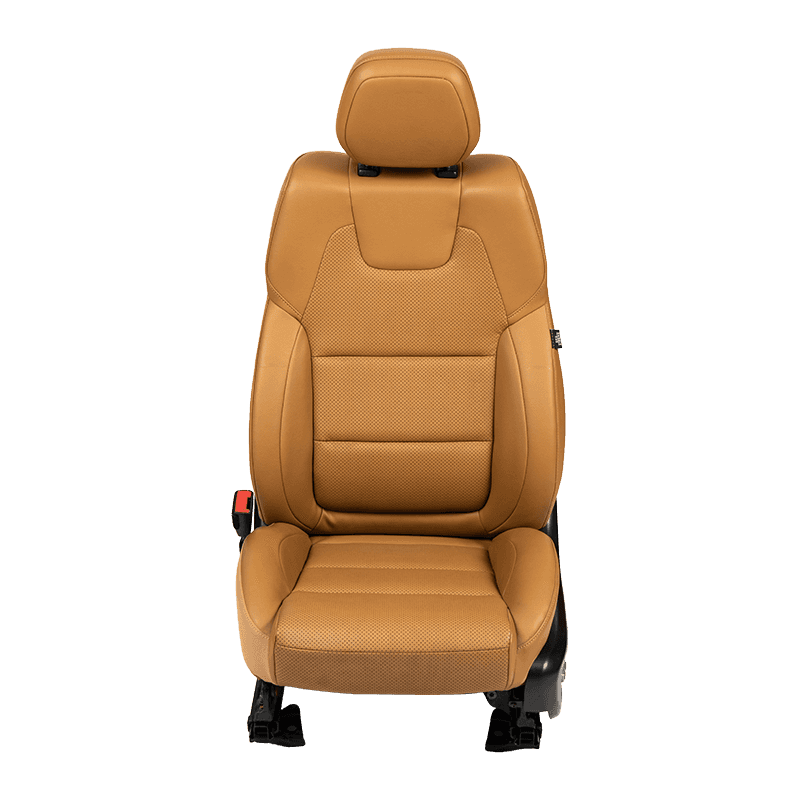

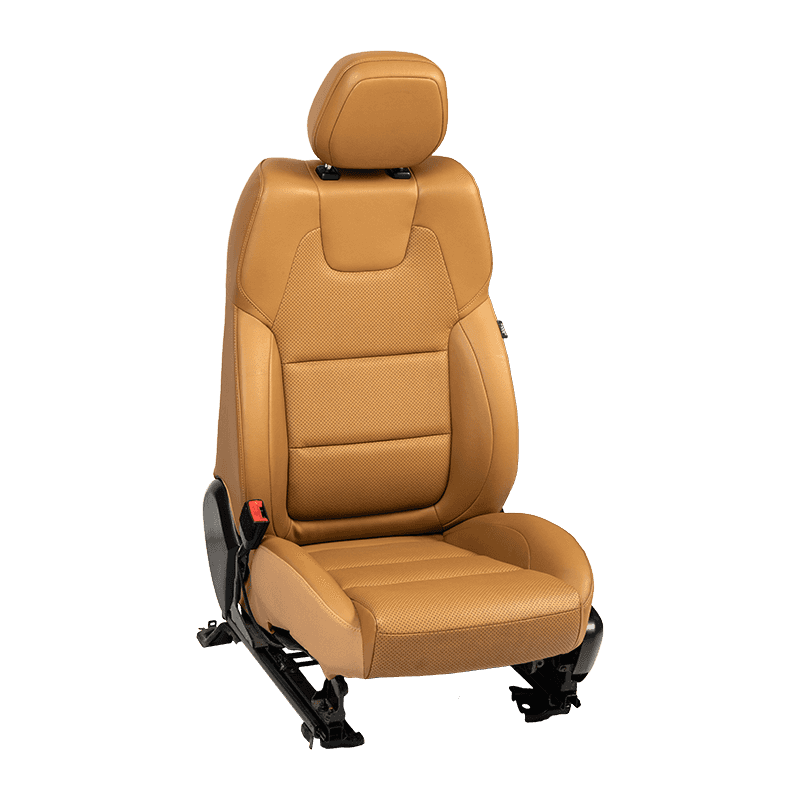

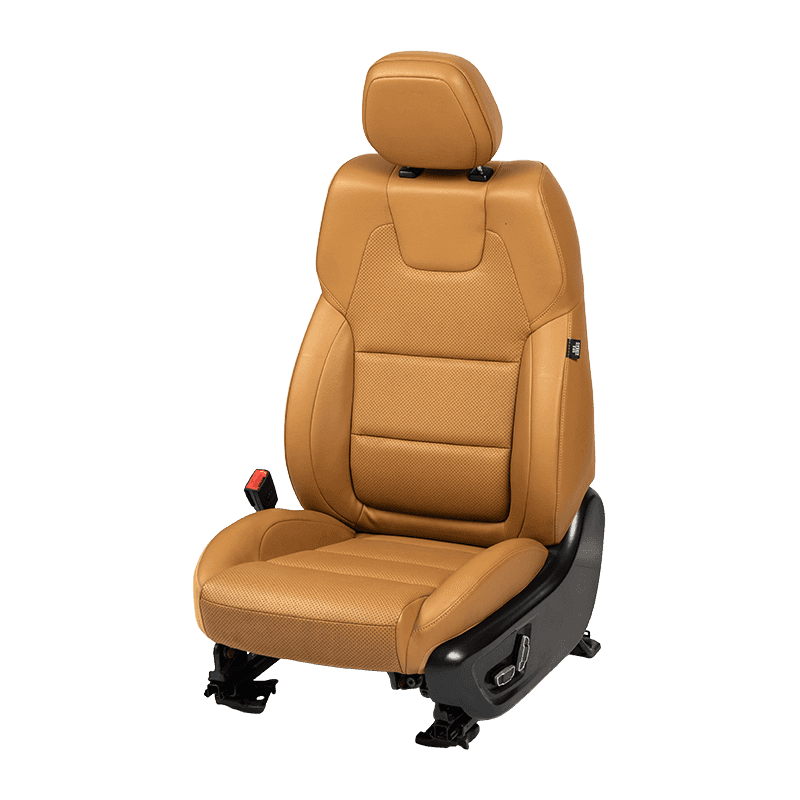

Commercial Vehicle 6-Way Electric Power Adjustable Driver Seat Assembly
This driver seat assembly features 6-way power electronic adjustment and comes equipped with an independent detachable headrest and built-in electric actuators. It delivers smooth 6-directional electronic positioning: fore-and-aft sliding, full seat height lift, front cushion tilt angle adjustment, and backrest recline control. Operated effortlessly via touch controls, it provides smooth, precise ergonomic alignment. Ideal as a primary driver seat for passenger cars, pickup trucks, urban SUVs, campervans, high-end light trucks, heavy commercial vehicles, factory OEM assembly, and aftermarket seating upgrades. Covered in durable black leather with segmented ergonomic support contours.
-
Total Seat Height (Including Headrest)
Standard 1050 mm; Adjustable range 980 mm to 1130 mm.
Effective Seat Cushion Dimensions (W x D)
Standard 465 mm x 415 mm; Range 420 mm to 500 mm x 380 mm to 450 mm.
Seat Cushion Foam Thickness
Standard 50 mm; Range 40 mm to 65 mm.
Backrest Foam Thickness
Standard 42 mm; Range 33 mm to 55 mm.
Fore-Aft Electric Travel Range
0 mm to 200 mm; Range 130 mm to 240 mm.
Vertical Height Adjustment Travel
0 mm to 75 mm; Range 40 mm to 90 mm.
Front Cushion Tilt Adjustment Travel
±15°; Range ±10° to ±20°.
Backrest Recline Adjustment Angle
90° to 128°; Range 85° to 135°.
Rated Safe Load Capacity
Standard 170 kg; Reinforced frame option up to 200 kg.
Complete Seat Assembly Net Weight
Approx. 14.5 kg to 16 kg (Slightly varies based on steel plate thickness).
Power Supply Voltage
Vehicle 12V DC (Universal for passenger cars); 24V DC version customizable for heavy trucks and engineering machinery.
Installation Method
4-point floor bolt mounting; Adapts via vehicle-specific adapter brackets.
-
Key Features & Selling Points:
- Precision 6-Way Power Adjustment: Features responsive electric motor actuation allowing drivers to easily fine-tune fore-aft sliding, seat height, front cushion tilt, and backrest angle for optimal driving ergonomics.
- Ergonomic Segmented Support: Molded with targeted posture zoning that reduces fatigue during extended long-haul driving, backed by a sturdy steel skeleton rated for 170 kg (upgradable to 200 kg).
- Flexible Dual Voltage Options: Standard 12V DC configuration fits passenger cars, light trucks, and RV conversions, with optional 24V DC builds available for heavy-duty commercial trucks and construction machinery.
- Durable Leather Upholstery: Premium wear-resistant black leather cover combines clean interior aesthetics with high resistance to abrasion, tearing, and daily wear.
- Direct Adapter Mounting: Utilizes a standard 4-point floor bolt pattern paired with model-specific mounting adapters to ensure fast, secure OEM or aftermarket installation.
